The STM32N647I0H3Q high-performance microcontroller is based on the Arm® Cortex®-M55 processor with an operating frequency of up to 800 MHz and features enhanced edge AI capabilities, expanding the STM32 high-performance product portfolio. The Cortex® M55 is the first CPU to introduce Arm® Helium vector processing technology, adding DSP processing capabilities to standard cpus.

The main specifications of STM32N647I0H3Q include:

Core processor: ARM® Cortex®-M55F

Kernel specification: 32-bit

Speed: 800MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB

Peripherals: AES, power-off detection/reset, DMA, I2S, LCD, POR, PWM, TRNG, WDT

I/O count: 106

Program storage capacity: -

Program memory type: ROMless

EEPROM capacity: -

RAM size: 4.2M x 8

Voltage - Power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 20x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

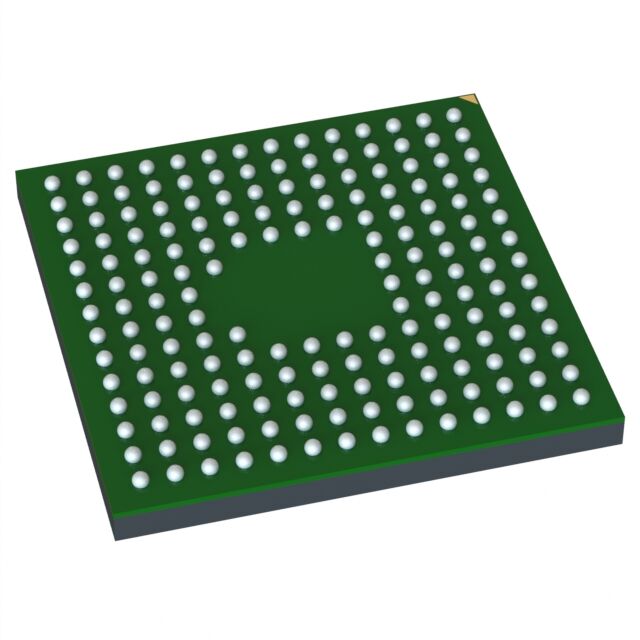

Package: 178-VFBGA

This is a microcontroller specifically designed for energy-saving edge AI applications. The STM32N647I0H3Q is widely used in scenarios that require low power consumption and high real-time performance, such as industrial anomaly detection, smart home security, wearable devices, and robot vision.
