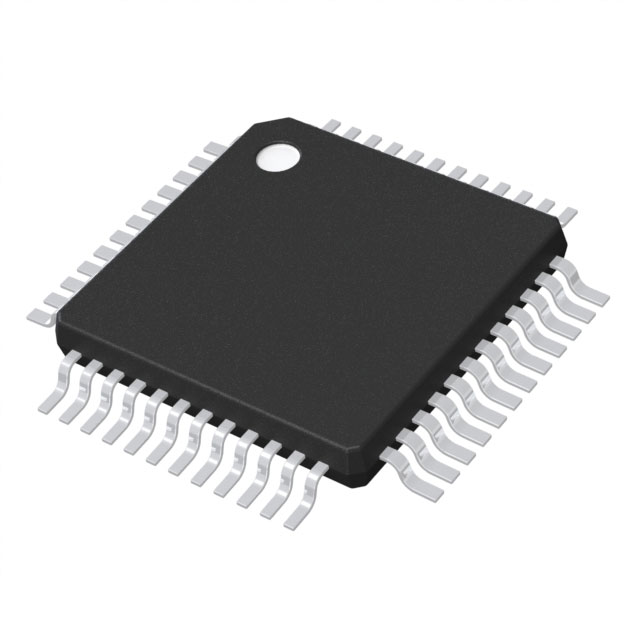

The ultra-low-power STM32L072CZT7 microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance Arm Cortex-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (up to 192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.

STM32L072CZT7 devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.

STM32L072CZT7 devices offer several analog features, one 12-bit ADC with hardware oversampling, two DACs, two ultra-low-power comparators, several timers, one low-power timer (LPTIM), four general-purpose 16-bit timers and two basic timer, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock.

Specifications Of STM32L072CZT7

Core: ARM Cortex M0+

Program Memory Size: 192 kB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 32 MHz

Number of I/Os: 40 I/O

Data RAM Size: 20 kB

Supply Voltage - Min: 1.8 V

Supply Voltage - Max: 3.6 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 105 C

DAC Resolution: 12 bit

Data RAM Type: SRAM

Data ROM Size: 6 kB

Data ROM Type: EEPROM

Interface Type: I2C, SPI, USART, USB

Moisture Sensitive: Yes

Number of ADC Channels: 13 Channel

Unit Weight: 180 mg
