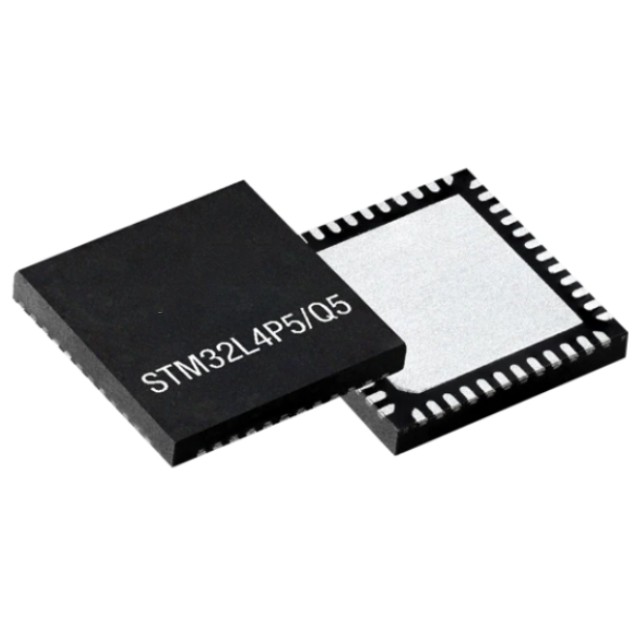

STM32L4P5CGT6 is ultra-low-power microcontroller devices (part of STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 MHz.

The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex-M4 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application’s security.

These devices embed high-speed memories (up to 1 Mbyte of Flash memory and 320 Kbytes of SRAM), a flexible external memory controller (FSMC) for static memories (for devices with packages of 100 pins and more), two OCTOSPI Flash memory interfaces (for devices with packages of 100 pins or more) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

Specifications Of STM32L4P5CGT6

Core Processor：ARM® Cortex®-M4

Core Size：32-Bit

Speed：120MHz

Connectivity：CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, USB OTG

Peripherals：Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT

Program Memory Size：1MB (1M x 8)

Program Memory Type：FLASH

RAM Size：320K x 8

Voltage - Supply (Vcc/Vdd)：1.71V ~ 3.6V

Data Converters：A/D 16x12b; D/A 2x12b

Oscillator Type：Internal

Operating Temperature：-40°C ~ 85°C (TA)
