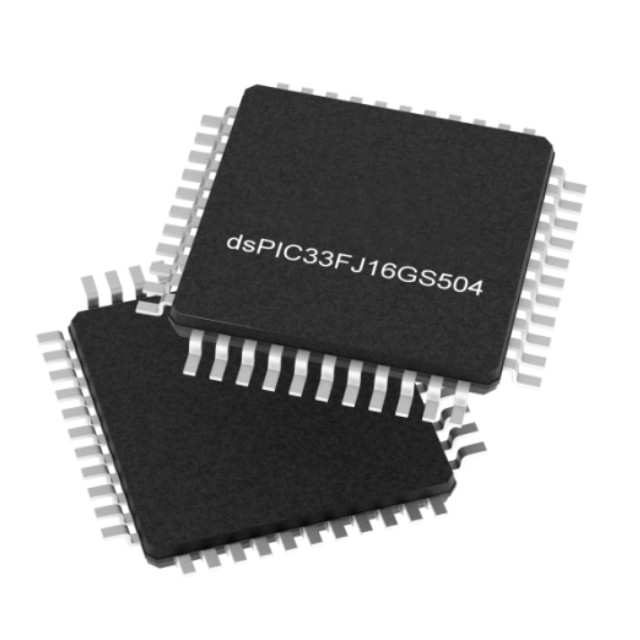

Commodity Model:DSPIC33FJ16GS504-H/PT

Trade Name:Digital Signal Controllers

Brand:Microchip

Particular Year:25+

Package:TQFP-44

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
DSPIC33FJ16GS504-H/PT
Package
TQFP-44
Describe
16-Bit Digital Signal Controllers with High-Speed PWM,ADC and Comparators

Product Description

DSPIC33FJ16GS504-H/PT devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection.


Feature Of DSPIC33FJ16GS504-H/PT

Operating Conditions

3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

3.0V to 3.6V, -40ºC to +85ºC, DC to 50 MIPS

Core: 16-Bit dsPIC33F CPU

Code-Efficient (C and Assembly) Architecture

Two 40-Bit Wide Accumulators

Single-Cycle (MAC/MPY) with Dual Data Fetch

Single-Cycle Mixed-Sign MUL plus Hardware Divide

32-Bit Multiply Support

Clock Management

±2.0% Internal Oscillator

Programmable PLLs and Oscillator Clock Sources

Fail-Safe Clock Monitor (FSCM)

Independent Watchdog Timer (WDT)

Fast Wake-up and Start-up

Power Management

Low-Power Management modes (Sleep, Idle, Doze)

Integrated Power-on Reset and Brown-out Reset

High-Speed PWM

Up to Four PWM Pairs with Independent Timing

Dead Time for Rising and Falling Edges

1.04 ns PWM Resolution

PWM Support for: DC/DC, AC/DC, Inverters, PFC and Lighting

Programmable Fault Inputs

Flexible Trigger Configurations for ADC Conversions

Advanced Analog Features

ADC module: 10-bit resolution with up to 2 Successive Approximation Register (SAR) converters (4 Msps) and up to six Sample-and-Hold (S&H) circuits

Flexible and Independent ADC Trigger Sources

Up to Four High-Speed Comparators with Direct Connection to the PWM module

Timers/Output Compare/Input Capture

Three General Purpose Timers: Three 16-bit and one 32-bit timer/counter

Two Output Compare (OC) modules

Two Input Capture (IC) modules

Peripheral Pin Select (PPS) to allow Function Remap

Communication Interfaces

UART module (12.5 Mbps): With support for LIN/J2602 protocols and IrDA®

4-Wire SPI module

I2C™ module (up to 1 Mbaud) with SMBus Support

PPS to allow Function Remap Input/Output

Sink/Source 18 mA on 8 Pins, 10 mA on 10 Pins and 6 mA on 17 Pins

5V Tolerant Pins

Selectable Open-Drain and Pull-ups

External Interrupts on up to 30 I/O Pins


Associated Products

Model

Brand

Package

Quantity

Describe

DSPIC33CK256MC106-I/PT

Microchip

TQFP-64

2000

High Performance 16-Bit Digital Signal Controllers with High-Speed PWM and CAN FD

DSPIC33FJ32GS610-E/PT

Microchip

TQFP-100

2000

16-Bit Digital Signal Controllers with High-Speed PWM,ADC and Comparators

DSPIC33CK256MC106-E/PT

Microchip

TQFP-64

2000

High Performance 16-Bit Digital Signal Controllers with High-Speed PWM and CAN FD

DSPIC33FJ32GS608-E/PT

Microchip

TQFP-80

2000

16-Bit Digital Signal Controllers with High-Speed PWM,ADC and Comparators

DSPIC33CK256MC105-I/PT

Microchip

TQFP-48

2000

High Performance 16-Bit Digital Signal Controllers with High-Speed PWM and CAN FD

DSPIC33CK256MC105-E/PT

Microchip

TQFP-48

2000

High Performance 16-Bit Digital Signal Controllers with High-Speed PWM and CAN FD

DSPIC33FJ32GS406-E/PT

Microchip

TQFP-64

2000

16-Bit Digital Signal Controllers with High-Speed PWM,ADC and Comparators

DSPIC33CK128MC506-E/PT

Microchip

TQFP-64

2000

High Performance 16-Bit Digital Signal Controllers with High-Speed PWM and CAN FD

DSPIC33CK128MC505-E/PT

Microchip

TQFP-48

2000

High Performance 16-Bit Digital Signal Controllers with High-Speed PWM and CAN FD

DSPIC33FJ32GS608-50I/PT

Microchip

TQFP-80

2000

16-Bit Digital Signal Controllers with High-Speed PWM,ADC and Comparators
