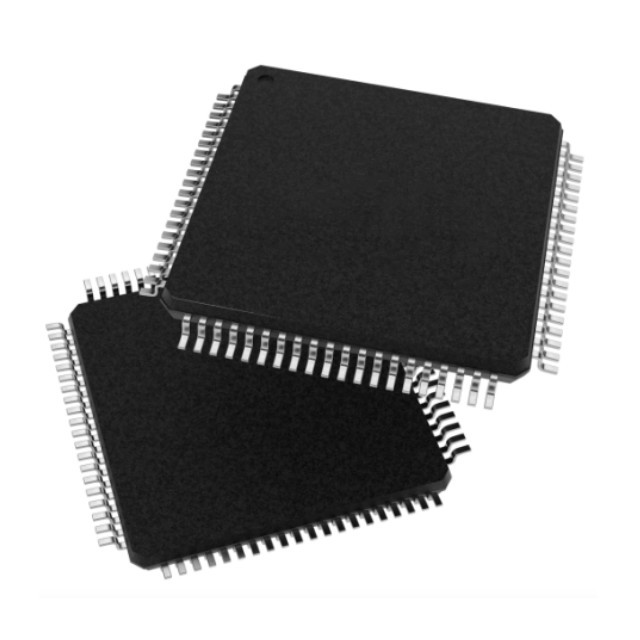

DSPIC33AK512MC508-E/PT is 200MHz, 32-bit dsPIC33A Digital Signal Controller (DSC) with 32/64bit Floating-Point Unit (FPU) and up to 512KB Flash Program Memory and 64KB SRAM Data Memory. High-speed 40MSPS 12-bit ADCs, high-bandwidth 100MHz op amps with low input voltage offset, fast 5nS comparators and high-speed PWM outputs designed to optimize real-time control applications.

Feature Of DSPIC33AK512MC508-E/PT

Operating Conditions

3.0V to 3.6V: -40°C to +85°C, DC to 200 MHz

3.0V to 3.6V: -40°C to +125°C, DC to 200 MHz

3.0V to 3.6V: -40°C to +150°C, DC to 100 MHz

High-Performance dsPIC33A Digital Signal Controller (DSC)

32-bit Rich Instruction Set for Optimized Speed and Program Code Size

Non-paged linear Data/Flash 24-bit addressing space

16-bit/32-bit instructions for optimized code size and performance

32-bit Wide Data Paths

Single and Double Precision Floating-Point Unit (FPU) Coprocessor

Edge or Level Change Notification Interrupt on I/O pins

Peripheral Pin Select (PPS) Remappable Pins to Reduce Board Layout Complexity

Multiple Interrupt Vectors with Individual Programmable Priority

Five External Interrupt Pins

Selectable Oscillator Options Including:

8 MHz, 1% at 0ºC-85ºC Internal Fast RC (FRC) oscillator

8 MHz, 2% Internal Backup Fast RC (BFRC) oscillator with 32 kHz divided output

2 Kbyte Instruction Cache

Sixteen 32-bit Working Registers

Dual 72-bit Accumulators Supporting 32-bit and 16-bit Fixed-Point DSP Operations

Eight Level Deep Working Register Sets

Eight Level Deep Accumulator Register Sets

Eight Level Deep Floating Point Register Sets

Memory Features

Up to 512 Kbytes of Program Flash Memory:

10,000 erase/write cycle endurance

20 years minimum data retention

Self-programmable under software control

Programmable code protection

Flash Error Correcting Code (ECC)

Programmable OTP regions

Entire Flash OTP by ICSP™ write inhibit

High-speed crystal resonator oscillator or external clock

Up to 64 Kbytes of RAM Memory:

8-channel hardware Direct Memory Access (DMA) module

RAM Error Correcting Code (ECC)

RAM Memory Built-In Self-Test (MBIST)

Flash Built-In Self-Test (NVMBIST)

High-Speed PWM

Multiple PWM Generators:

Twelve pair (twenty four output) generators with resolution down to 1.25 ns

Dead-Time Compensation Supports Lower Speed Operation

PWM Support for:

BLDC, PMSM, ACIM, SRM and stepper motors

Constant on-time, hysteretic, burst mode power applications

Fault and Current Limit Inputs

Flexible Trigger Configuration for ADC Triggering

High-Speed Analog-to-Digital Converters

Five 12-bit Resolution ADCs

Up to 40 MSPS Conversion Rate

Up to 26 Analog Input Pins

Sixteen Settings Channels. Each Channel:

Can be assigned to any analog input (I/O pin or internal signal)

Can be set to a different sampling time

Can be configured as single-ended or differential

Conversion result can be formatted as unsigned or signed

Conversion result can be left-aligned (fraction format)

Has a separate 32-bit conversion result register

Supports Four Sampling modes:

Oversampling of multiple samples

Integration of multiple samples

Window (multiple samples accumulated when the gate signal is active)

Single Conversion

All channels have a digital comparator to detect when the conversion result is less than, greater than, in bounds or out of bounds for the configurable thresholds

Last three settings channels have the second result accumulator to implement second order filters

Band Gap Reference and Temperature Sensor Diode Inputs

Other Analog Features

Eight 5 nS Analog Comparators with 12-bit PDM DACs

Input multiplexing

Slope compensation

Up to two DAC output buffers

Four Constant-Current Sources

3 Rail-to-Rail 100 MHz Operational Amplifiers with 40 V/μS slew rate

1 mV offset (typical) with calibration of input offset voltage

Integrated Touch Controller:

Independent from ADC processing capability

Self and Mutual CVD Touch Modes support

18 TO 32 Touch ADC RX inputs

8 TO 32 Touch TX outputs

Advanced capacitive sensing, touch buttons, sliders and wheels

Up to 32 self-capacitance channels and up to 256 mutual-capacitance channels
