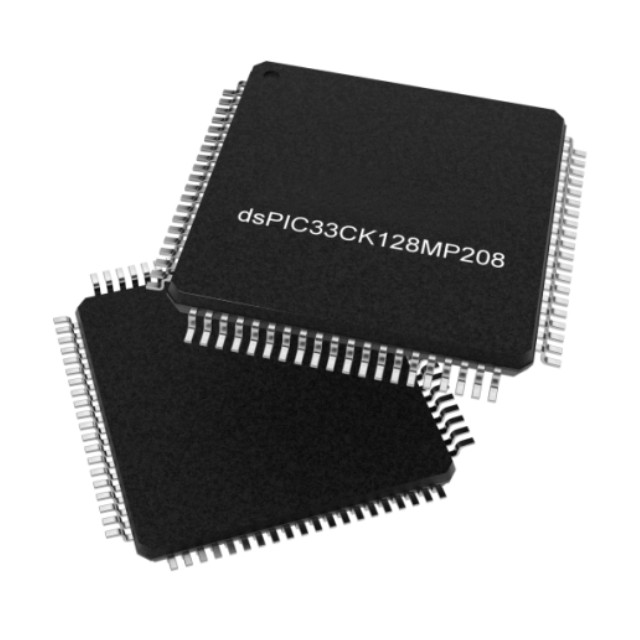

DSPIC33CK128MP208-E/PT is digital signal controllers (DSCs) features a 100 MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of digital power, motor control, advanced sensing and control, high-performance general-purpose and robust applications.

Feature Of DSPIC33CK128MP208-E/PT

Operating Conditions

3.0V to 3.6V

-40ºC to +125ºC, DC to 100 MHz

-40ºC to +150ºC, DC to 70 MHz

dsPIC33CK DSC Core

Up to 256 KBytes of Program Flash with ECC and Live Update (dual-partition Flash)

Up to 24 KBytes of Data SRAM with Memory Built in Self-Test (MBIST)

Modified Harvard architecture with 16-bit data and 24-bit instructions

Code efficient (C and Assembly) CPU architecture designed for real-time applications

16x 16-bit working registers

4 sets of interrupt context saving registers, including ACC and CPU status for fast interrupt handling

Single-cycle, mixed-sign 32-bit MUL

Fast 6-cycle hardware 32/16 and 16/16 DIV

Dual 40-bit fixed point Accumulators (ACC) for DSP operations

Single-cycle MAC/MPY with dual data fetch and result write-back

Zero overhead looping support

High-Speed PWM Module

8 independent PWM pairs (16 total outputs) with up to 250ps resolution

Dead-time insertion for rising and falling edges and dead-time compensation support

Clock chopping for high-frequency operation

Fault and current limit inputs

Flexible trigger configuration for ADC triggering

Advanced Analog Features

3 12-bit 3.5 MSPS ADC Modules each with 2 dedicated SARs and 1 shared SAR cores (3 S&Hs)

12, 16, 19, 20 or 24 ADC input channels (depending on package)

4 digital comparators for reducing CPU overhead

4 oversampling filers up to 256x for increased resolution (up to 16-bits)

3 analog comparators (15ns) with dedicated 12-bit DACs with hardware slope compensation

Up to 3 op amps with internal connection to ADC Module

Core Independent Touch

Uses Peripheral Trigger Generator (PTG) and High-speed ADCs

Ready-to-use touch library support in MPLAB Code Configurator (MCC) 

Functional Safety Support (ISO 26262 and IEC 61508)

ISO 26262 and IEC 61508 Functional Safety Ready

ASIL B automotive safety applications – ISO 26262

SIL 2 industrial safety applications – IEC 61508

ISO 26262 and IEC 61508 Functional Safety Packages

Embedded Security

CodeGuard security together with Flash OTP by ICSP Write Inhibit enables implementing Immutable Secure Boot

Flash OTP by ICSP Write Inhibit to configure entire Flash as OTP

Option to disable entry to the debug mode

User OTP

Enables implementing robust security use cases together with CryptoAuthentication and CryptoAutomotive devices such as:

Secure Boot

Secure Firmware Upgrade

Secure Communication

Node Authentication and more

Timer/Counters/Output Compare/Input Capture

10 16-bit timer/counters (up to 4 32-bit)

14 PWM or Output Compare (OC) outputs

9 Input Captures (IC) pins or internal connections from the CLC or Comparator Modules

Peripheral Trigger Generator (PTG) for scheduling complex sequences

2 Quadrature Encoder Interface (QEI) Modules for optical encoder support

Communication Interfaces

3 UARTs (15 Mbps) with automated protocol handling for LIN/J2602, DMX and IrDA®

3 4-wire SPI/I2S up to 40 MHz with dedicated pins

3 I2C Modules (up to 1 Mbps) with SMBus support

CAN Flexible Data Rate (CAN-FD) Module ("50x devices only)

2 Single-Edge Nibble Transmission (SENT) Modules for sensor interfacing

4 DMA channels supporting UART, SPI, ADC, CAN-FD, IC, OC and Timer data transfers

Special Features

4 Configurable Logic Cell (CLC) Modules with user defined logic gate circuits

Programmable Pin Select (PPS) for peripheral pin function mapping

Parallel Master Port (PMP) for external data expansion

On-chip temperature sensor with direct ADC Module connection

Clock and Power Management

On-chip 8 MHz Fast RC (FRC) and 32 kHz Low-Power RC (LPRC) oscillators

Programmable PLLs with external oscillator clock sources and Reference Clock Output (REFO)

Fail-Safe Clock Monitor (FSCM) with 8 MHz Back-up Fast RC (BFRC) oscillator

Low-Power management modes - Sleep, Idle and Doze

Integrated Power-on Reset (POR) and Brown-Out Reset (BOR)

Debugger Development Support

In-Circuit and in application programming and debug support (ICSP)

On-chip debug trace buffer and run-time watch with 3 complex and 5 simple breakpoints

IEEE 1149.2 (JTAG) boundary scan support

Functional Safety hardware features

Dead-Man Timer (DMT) safety feature clocked by instruction fetches

Windowed Watch Dog Timer (WDT)

CodeGuard™ security for program FLASH

Programmable Cyclic Redundancy Check (CRC)

FLASH ECC Fault Injection testing feature

Flash OTP by ICSP™ write inhibit

RAM Memory Built in Self-Test (MBIST)

Clock Monitor with multiple redundant clock sources

Analog peripherals redundancies

Write protection

Hardware traps

Shadow working registers

PWM Fault Management

cap-less on-chip LDO

I/O Port read-back

Class B Safety Library, IEC 60730
