The AMC8V208YBFR is an 8-channel 16-bit analog controller featuring a current output DAC and multiplexer output, which is optimized for optical fiber network applications.

The AMC8V208YBFR includes six dedicated 16-bit current-output digital-to-analog converters (IDacs) and two 16-bit IDacs, which can be configured to control the high output current generation circuit (IDAC+). The AMC8V208YBFR also includes a MUXOUT pin for monitoring the voltage and current on the current output pin. The integrated high-precision internal reference makes it unnecessary to use external references in most applications.

Main specifications

Type: DAC

Number of channels: 8

Resolution (bit) : 16 b

Sampling rate (per second) : -

Data interfaces: I2C, SPI

Power supply voltage source: Single power supply

Voltage - Power supply: 1.1V to 1.95V, 1.1V to 1.95V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

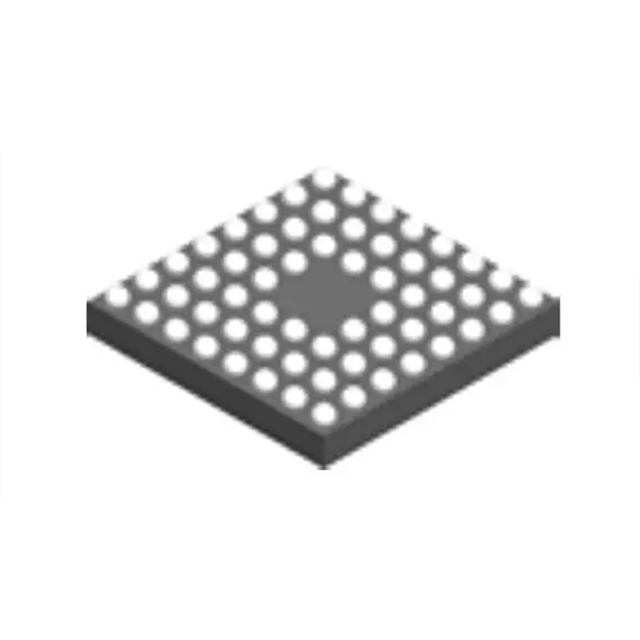

Package/Shell: 60-DSBGA

Application field

The AMC8V208YBFR is particularly suitable for applications that require high-precision current control, such as optical fiber networks and optical modules. Its highly integrated design eliminates the need for external benchmarks in most applications, simplifying system design ‌.
