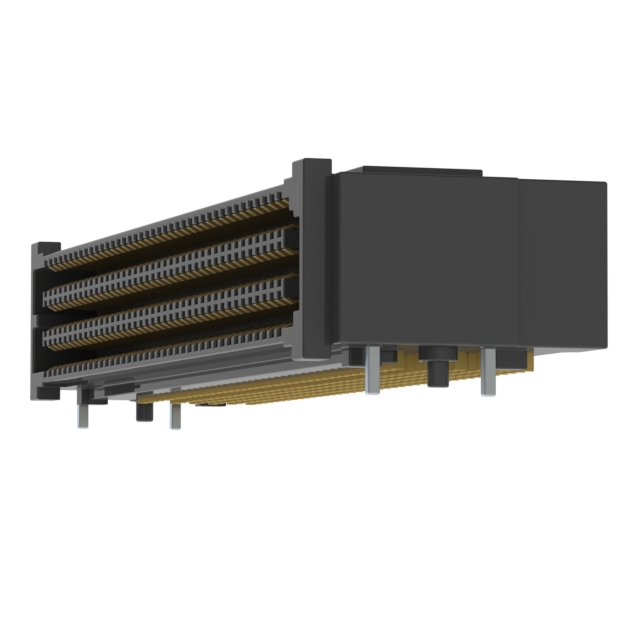

Samtec SEAF-40-01-L-06-2-RA-TR: 240POS, Board-to-Board Connector - SEARAY™ High-Speed Right-Angle Open Terminal Array Receptacle, 0.050" Pitch

Related Information:

SEARAY™ High-Speed High-Density Open Terminal Arrays allow for maximum grounding and cabling flexibility.56 Gbps PAM4 High-Density Open Terminal Arrays provide maximum flexibility and up to 560 I/Os, with stacking heights ranging from 7 mm to 40 mm, allowing for simultaneous transmission of differential pairs over the Simultaneous transmission of differential pair signals, single-ended signals, and power over the same interconnect.

Product Details:

Model: SEAF-40-01-L-06-2-RA-TR

Series: SEARAY™ SEAF

Package: 240POS

Type: board-to-board connector

Connector Type: high density array, female

Number of Pin Positions: 240

Pitch: 0.050" (1.27mm)

Number of Rows: 6

Mounting Type: surface mount, right-angled

Features: board guide

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Height Above Board: 0.411" (10.45mm)

SEAF-40-01-L-06-2-RA-TR Product Features:

High Density Pin Tab Open Terminal Array

Right Angle Design

.050" (1.27 mm) Pitch

Durable Edge Rate® Terminals

Current Rating: 1.9 A max

Voltage Rating: 240 VAC/339 VDC max

Surface Soldered Pins

Guide Post, Latch Post Optional

Less Insertion/Uprojection Force
