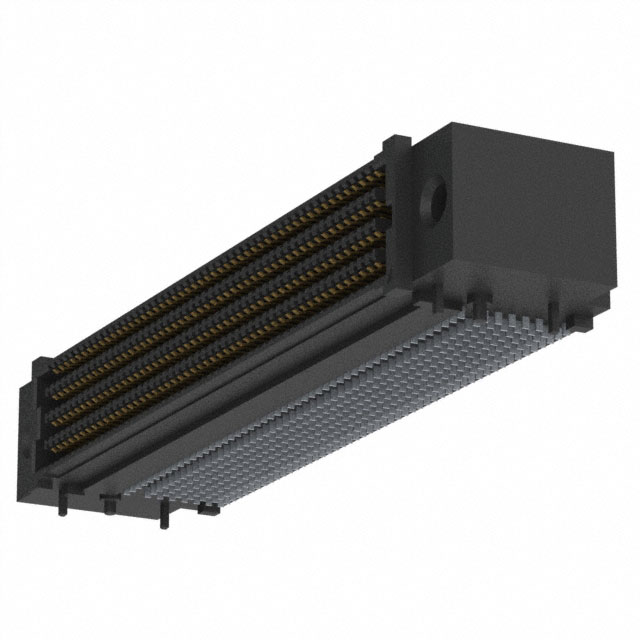

SEAF-50-01-S-08-1-RA-GP-TR is a high-density board-to-board connector in Samtec's SEARAY™ series, featuring an 8-row array layout with 400 contacts and a pitch of 1.27 mm (0.050 inches). It is a right-angle surface mount (SMD) type socket connector. This product is specifically designed for high-speed signal transmission and compact space interconnection applications, suitable for board-to-board connection requirements in fields such as high-performance computing and communication equipment.

Core Features

1. High-density interconnection design

400 contacts arranged in 8 rows with a pitch of 0.050 inches (1.27 mm)

Surface-mount (SMD) right-angle mounting configuration to save PCB space

Gold-plated contact surfaces (thickness: 30.0μin/0.76μm) ensure reliable connections and corrosion resistance

2. Mechanical Characteristics

Board height: 12.99mm (0.511 inches)

Equipped with board rails and mating flanges to enhance connection stability

Pick-and-place compatible design suitable for automated assembly

3. Electrical Performance

Supports high-speed signal transmission, suitable for applications at 24Gbps and above

Features the Edge Rate® terminal system for exceptional signal integrity

Current rating: 1.9A per contact, voltage rating: 240VAC

Technical specifications

Product model: SEAF-50-01-S-08-1-RA-GP-TR

Manufacturer: Samtec Inc.

Series: SEARAY™ SEAF

Connector type: High-density array, female

Pin Count: 400

Row Count: 8

Pitch: 0.050‘ (1.27mm)

Mechanical Parameters

Mounting Type: Surface Mount, Right Angle

Board Height: 0.511’ (12.99mm)

Features: Board Rail, Mating Flange, Pick-and-Place Compatible

Contact Surface Treatment

Material: Gold Plated

Thickness: 30.0 µin (0.76 µm)

Electrical Parameters

Current Rating: 1.9 A/contact

Voltage Rating: 240 VAC
