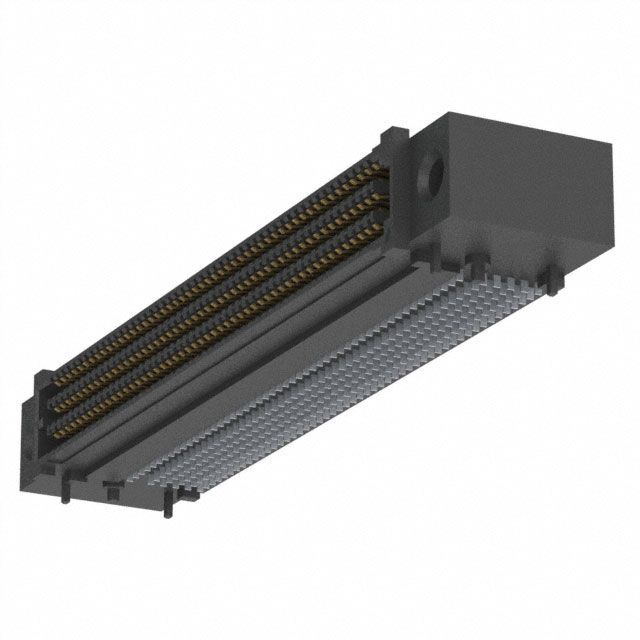

SEAF-50-01-S-06-1-RA-GP-TR is a high-speed connector designed and produced by SAMTEC and belongs to the SEARAY ™ series.

Basic information

Brand: SAMTEC

Model: SEAF-50-01-S-06-1-RA-GP-TR

Series: SEARAY ™

Type: High Density Array, Female

Installation method: surface mount, right angle

Technical parameters

Pitch: 1.27 mm (0.050 inch)

Number of needles: 300

Number of rows: 6

Contact plating: Gold plating

Operating temperature range:-55 °C to + 125 °C

Product Features-SEAF-50-01-S-06-1-RA-GP-TR

High-speed performance: Supports high-speed signal transmission up to 56Gbps, suitable for PAM4 applications.

High Density Array: Up to 500 terminals are available with a 1.27 mm pitch grid, maximizing single-ended or differential pair configuration, as well as flexibility for power, signal or ground.

Compatible with multiple configurations: Compatible with multiple configurations, including single-ended and differential pair configurations.

DURABLE DESIGN: Features Edge Rate ® contact system to ensure reliable electrical connections.

FLEXIBLE INSTALLATION: Right-angle design, suitable for high-density board layout, easy to achieve efficient connection in limited spaces.

Signal Integrity: With optimized pinout and signal channel design, signal interference and crosstalk are reduced to ensure the integrity of high-speed signals.

Application scenario-SEAF-50-01-S-06-1-RA-GP-TR

Communication equipment: used for high-speed communication backplanes, switches, routers, etc. to achieve high-speed data transmission.

Computers and servers: Suitable for server motherboards and high-performance computing devices, providing high-density connectivity and high-speed signal transmission.

Industrial Automation: In industrial control boards, automation equipment, ensure high-reliability connections and high-speed signal transmission.

Consumer Electronics: It is used in high-end consumer electronics products, such as high-performance gaming devices, virtual reality devices, etc., and supports high-speed data transmission.
