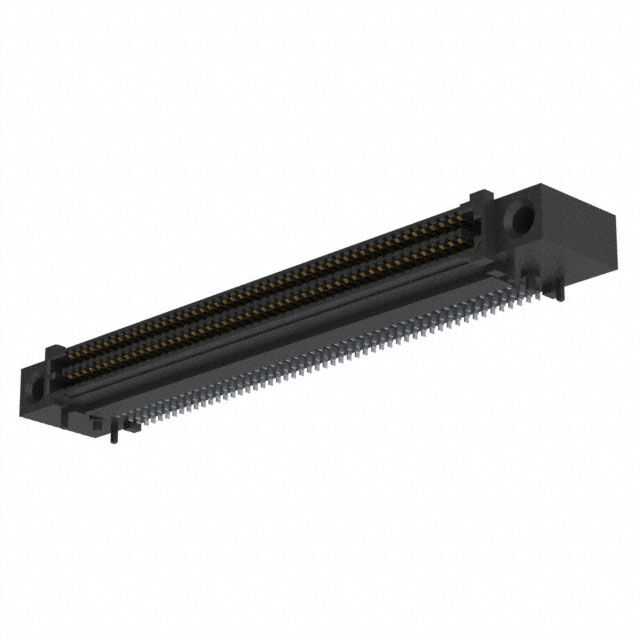

SEAF-50-01-S-04-1-RA-GP-TR is a high-density right-angle receptacle connector in Samtec's SEARAY ™ series, designed for Board-to-Board and Mezzanine interconnection applications. Featuring a 1.27 mm pitch grid and a durable Edge Rate ® terminal system, the connector offers excellent signal integrity and mechanical stability for high-performance electronic systems where space is constrained.

Core Characteristics (SEAF-50-01-S-04-1-RA-GP-TR)

High-density interconnect design

200 contacts arranged in 4 rows with 0.050 "(1.27 mm) pitch

Surface mount (SMD) right-angle mount to save PCB space

Gold-plated contact surface (thickness 30.0 μin/0. 76 μm) for reliable connection and corrosion resistance

Mechanical properties

Height on board: 0.311 "(7.90 mm)

Equipped with plate guides and fitting flanges for enhanced connection stability

Pick-and-place compatible design for automated assembly

Electrical properties

Support high-speed signal transmission (the specific rate is not clear, the same series can reach 24Gbps)

Electronic connectivity for harsh environments

Product Attributes (SEAF-50-01-S-04-1-RA-GP-TR)

Product category: Board-to-board and mezzanine connectors

Products: Headers

Number of Positions: 200 Position

Pitch: 1.27 mm (0.05 in)

Rows: 4 Row

Termination Type: Solder

Mounting angle Right Angle

Stack height: 7 mm

Current rating: 2.7 A

Voltage rating: 240 VAC

Minimum operating temperature:-55 C

Maximum operating temperature: + 125 C

Contact plating: Gold

Contact Material: Copper Alloy

Enclosure Material : Liquid Crystal Polymer (LCP)

Series: SEAF-RA
