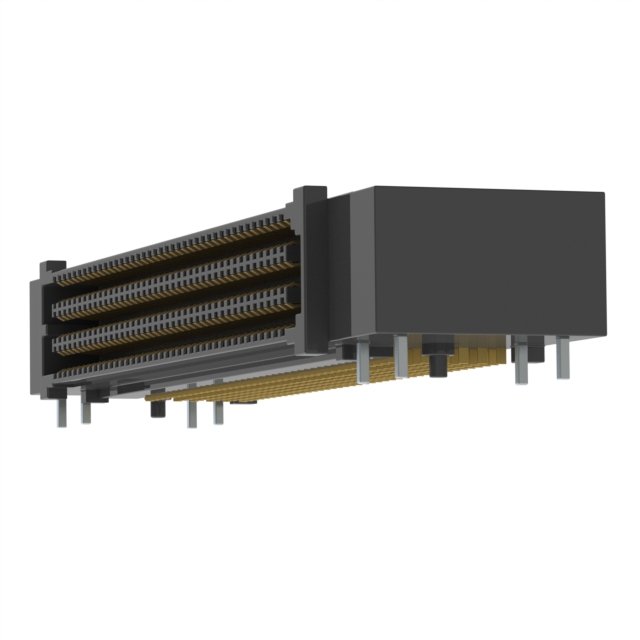

SEAF-40-01-L-06-2-RA-LP-K-TR: 240POS, SEARAY™ SEAF Series High Speed Right Angle Open Terminal Array Receptacle

The following are product details for connector SEAF-40-01-L-06-2-RA-LP-K-TR:

Model No.: SEAF-40-01-L-06-2-RA-LP-K-TR

Series: SEARAY™ SEAF

Product Details: SEARAY™ High Speed Right Angle Open Terminal Array Receptacle, 0.050’ Pitch

Connector Type: High Density Array

Number of Positions: 240

Pitch: 0.050’ (1.27mm)

Number of rows: 6

Mounting Type: Surface Mount, Right Angle

Features: Board Guide, Snap Lock, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Board Height: 0.411’ (10.45mm)

The SEAF-40-01-L-06-2-RA-LP-K-TR is a 240-pin, 6-row, 0.050’ pitch, surface mount, high-speed, right-angle, open terminal array receptacle from the SEARAY™ SEAF Series. It comes with board guides to aid in alignment, is suitable for SMT placement, and has thin gold plated (0.25µm) contacts.SEARAY™ uses the Edge rate® termination system, which is designed for applications requiring high docking cycles and 56 Gbps PAM4 performance.

Product Features:

- High Density Pin Chip Open Terminal Array

- Right Angle Design

- .050’ (1.27 mm) pitch

- Durable Edge Rate® terminals

- Current rating: 1.9 A maximum

- Rated voltage: 240 VAC/339 VDC maximum

- Surface solder pins

- Guide post, latching post options

- Lower insertion/extraction force
