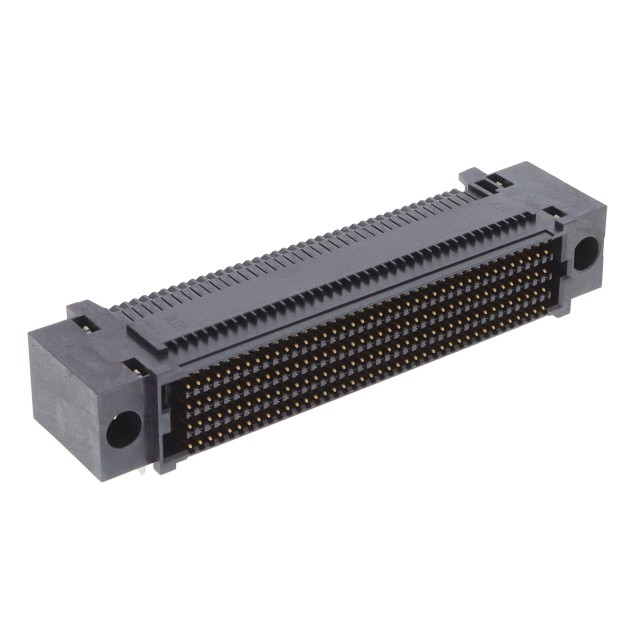

Commodity Model:SEAF-40-01-L-08-1-RA-GP-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:320POS

Delivery Date:New and Original

Stock: 1320pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-40-01-L-08-1-RA-GP-TR
Package
320POS
Describe
320-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-40-01-L-08-1-RA-GP-TR is a high-performance, high-speed right-angle open terminal array socket belonging to SAMTEC's SEARAY™ series. This series of connectors uses the Edge Rate® terminal system, featuring high density and high bandwidth, capable of meeting the demands for high bandwidth and low latency in data centres, enterprise networks, and other applications.


SEAF-40-01-L-08-1-RA-GP-TR Product Features

High-speed performance: Supports high-speed signal transmission up to 56Gbps, meeting the high-bandwidth requirements of data centres and communication equipment.

High-Density Design: .050’ (1.27mm) pitch grid, providing up to 500 terminals, maximising flexibility in single-ended or differential pair configurations, as well as power, signal, or ground design and routing.

Multiple Configuration Options: Customisable to meet different requirements, offering various configuration options to satisfy specific application needs.

High reliability: Features excellent electrical and mechanical performance, ensuring stability and reliability in high-speed signal transmission.

Strong compatibility: Compatible with multiple high-speed communication standards, suitable for various high-speed communication application scenarios.


SEAF-40-01-L-08-1-RA-GP-TR Specification Parameters

Pitch: 0.050’ (1.27mm)

Pin count: 320P

Mounting method: Surface mount

Number of rows: 8

Contact plating: Gold

Operating temperature range: -55°C to +125°C

Package type: SMD

Data transmission rate: Up to 56 Gbps


SEAF-40-01-L-08-1-RA-GP-TR Application scenarios

Data centres: Used for high-speed connections in servers, switches, and other devices, supporting high-speed data transmission and high-density cabling to enhance communication efficiency in data centres.

Communication Equipment: Suitable for routers, optical modules, and other communication devices, providing reliable high-speed signal transmission solutions.

Test and Measurement Equipment: Ensures accurate signal transmission and measurement precision in high-speed test and measurement instruments.

Industrial Automation: Used as high-speed communication interfaces in industrial automation and control systems, supporting high-speed data exchange between industrial devices.

Consumer Electronics: Suitable for high-performance computers, game consoles, and other consumer electronics, enhancing device communication capabilities and data processing speeds.
