Service Telephone:86-755-83294757
Trade Name:Board-to-Board Connector
Brand:Samtec
Particular Year:25+
Package:240POS
Delivery Date:New and Original
Stock: 1240pcs

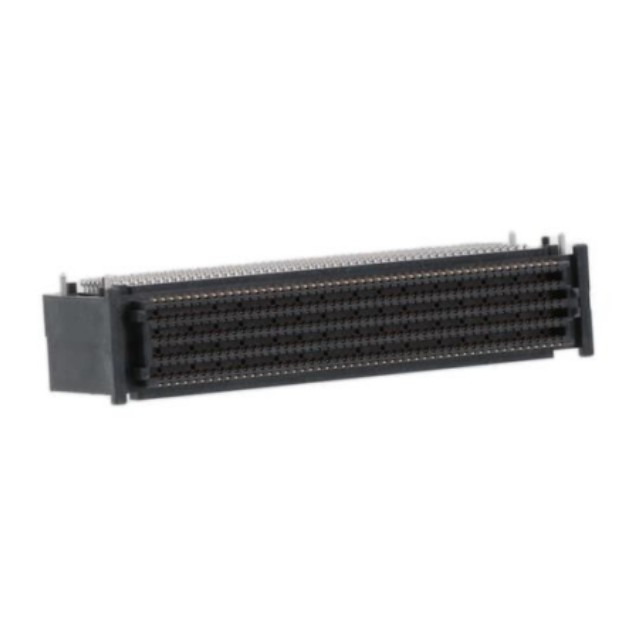

SEAF-40-01-L-06-1-RA-GP-TR is a high-speed connector designed and manufactured by SAMTEC, part of the SEARAY™ series. It features the Edge Rate® terminal system with a right-angle open pin array structure, a pitch of 0.050’ (1.27mm), and supports up to 500 pins, making it suitable for various single-ended or differential pair configurations. It is ideal for high-speed signal transmission and high-density routing applications.
SEAF-40-01-L-06-1-RA-GP-TR Product Specifications:
Pitch: 0.050’ (1.27mm)
Pin Count: 240P
Mounting Type: Surface Mount
Row Count: 6
Contact Plating: Gold
Operating Temperature Range: -55°C to +125°C
Package Type: SMD
Data Transfer Rate: Up to 56 Gbps
SEAF-40-01-L-06-1-RA-GP-TR Product Features:
High-Density Layout
240 pins arranged in 6 rows with a pitch of 0.050’ (1.27mm), suitable for high-density PCB designs.
Right-angle (Right Angle) mounting optimises space utilisation.
High-Speed Signal Support
Utilises Edge Rate® terminal technology, supporting 56 Gbps NRZ signal transmission, suitable for high-frequency applications such as 5G and data centres.
Reliability and Durability
Gold-plated contacts (thickness 10.0 µin / 0.25 µm) enhance conductivity and oxidation resistance.
Board rails and mating flange design ensure stable insertion and removal.
Installation and Compatibility
Surface mount (SMD) design supports automated PCB assembly.
Board height of 0.411’ (10.45mm) accommodates various stacking requirements.
