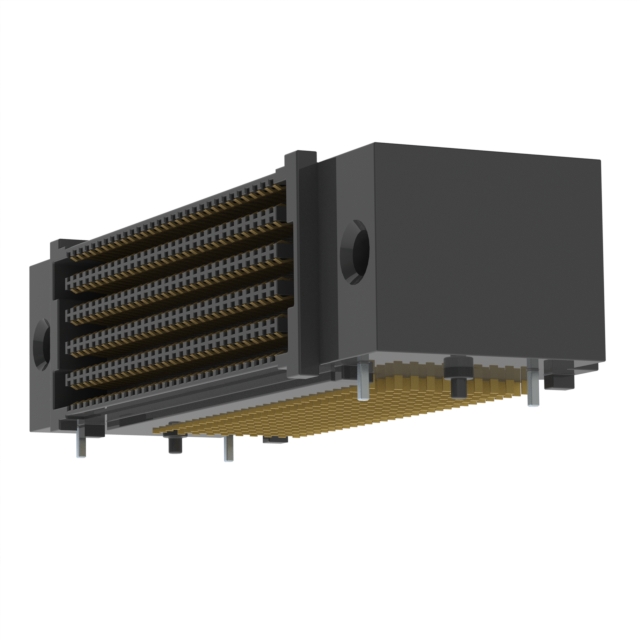

For picture reference, please see the specifications
< >

Commodity Model:SEAF-30-01-S-10-1-RA-GP-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:300POS

Delivery Date:New and Original

Stock: 1300pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-30-01-S-10-1-RA-GP-TR
Package
300POS
Describe
300-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-30-01-S-10-1-RA-GP-TR is a high-density board-to-board connector belonging to the SEARAY™ SEAF series, designed for high-speed signal transmission and compact PCB interconnection. The connector features a 300-pin (POS) array and is suitable for high-performance applications such as servers, communication equipment, and industrial automation.


SEAF-30-01-S-10-1-RA-GP-TR Product Attributes:

Product Type: Board-to-Board and Interlayer Connector

Product: Headers

Position Count: 300 Position

Pitch: 1.27 mm (0.05 in)

Row Count: 10 Row

Termination Type: Solder

Mounting Angle: Right Angle

Stack Height:    7 mm

Current Rating:    2.7 A

Voltage Rating:    240 VAC

Minimum Operating Temperature:    -55°C

Maximum Operating Temperature:    +125°C

Contact Plating:    Gold

Contact Material:    Copper Alloy

Housing Material:    Liquid Crystal Polymer (LCP)

Series:    SEAF-RA

Application:    Power, Signal

Flammability Rating:    UL 94 V-0
