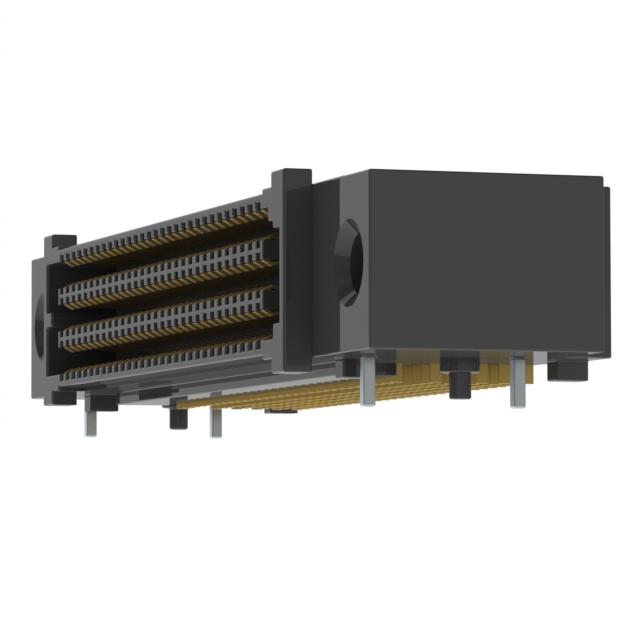

SEAF-30-01-S-06-1-RA-GP-TR is a high-density board-to-board connector belonging to the SEARAY™ SEAF series, featuring an 180-pin position (POS) array design, suitable for high-speed signal transmission and compact PCB interconnect applications.
Product Attributes (SEAF-30-01-S-06-1-RA-GP-TR)
Product Type: Board-to-Board and Interlayer Connectors
Product: Headers
Position Count: 180 Position
Pitch: 1.27 mm (0.05 in)
Row Count: 6 Row
Termination Type: Solder
Mounting Angle: Right Angle
Stack Height: 7 mm
Current Rating: 2.7 A
Voltage Rating: 240 VAC
Minimum Operating Temperature: -55°C
Maximum Operating Temperature: +125°C
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Series: SEAF-RA
Key Features (SEAF-30-01-S-06-1-RA-GP-TR)
High-density layout
180 pin positions arranged in 6 rows with a pitch of 0.050’ (1.27 mm), suitable for high-density PCB designs.
Right-angle (Right Angle) mounting optimises space utilisation.
High-speed signal support
Utilises Edge Rate® terminal technology to support 56 Gbps PAM4 high-speed data transmission, suitable for high-frequency applications such as 5G and data centres.
Reliability and durability
Gold-plated contacts (thickness 30.0µin / 0.76µm) enhance conductivity and oxidation resistance.
Board rail design ensures stable insertion and removal.
Installation and Compatibility
Surface Mount (SMD) design supports automated PCB assembly.
Board height of 0.411’ (10.45mm) accommodates various stacking requirements.
Model
Brand
Package
Quantity
Describe
Samtec
560POS
3000
560POS, SEARAY™ High Speed High Density Terminals Open Terminal Array Pinout
Samtec
200POS
3000
.050’ pitch, SEARAY™ High Speed High Density Terminals Open Terminal Array Pinout
Samtec
300POS
3000
300POS, SEARAY™ High Speed High Density Terminal Open Terminal Array Receptacle
Samtec
250POS
3000
250POS, SEARAY™ High Speed High Density Terminal Open Terminal Array Receptacle
Samtec
250POS
3000
250POS, SEARAY™ High Speed High Density Terminals Open Terminal Array Receptacle
