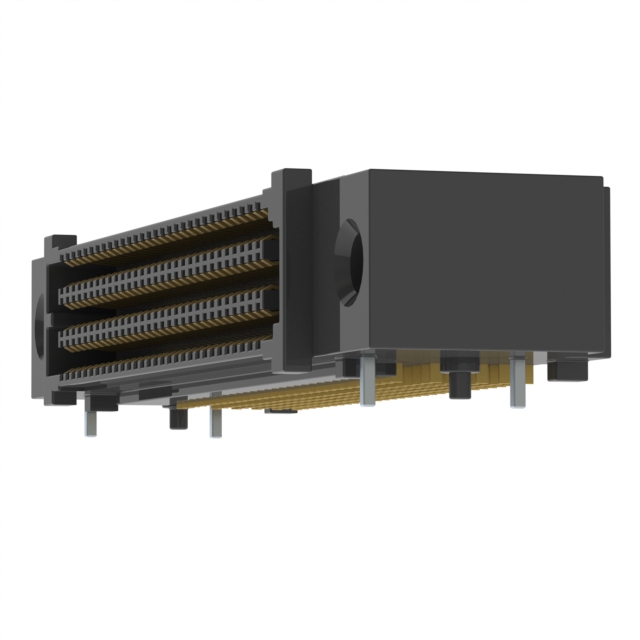

For picture reference, please see the specifications
< >

Commodity Model:SEAF-30-01-L-06-1-RA-GP-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:180POS

Delivery Date:New and Original

Stock: 1180pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-30-01-L-06-1-RA-GP-TR
Package
180POS
Describe
180-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-30-01-L-06-1-RA-GP-TR is a high-speed connector from SAMTEC, featuring the Edge Rate® terminal system, specifically designed for high mating cycles and high-speed signal transmission. This series of connectors offers high density and high bandwidth, meeting the demands of data centres, enterprise networks, and other applications requiring high bandwidth and low latency.


Product Features — SEAF-30-01-L-06-1-RA-GP-TR

High-Speed Performance: Supports high-speed signal transmission up to 56Gbps, meeting the high-bandwidth requirements of data centres and communication equipment.

High-Density Design: .050’ (1.27mm) pitch grid, providing up to 500 terminals, maximising flexibility in single-ended or differential pair configurations, as well as power, signal, or ground design and routing.

Multiple Configuration Options: Customizable to meet different requirements, offering various configuration options to satisfy specific application needs.

High Reliability: Features excellent electrical and mechanical performance, ensuring stability and reliability in high-speed signal transmission.

Strong Compatibility: Compatible with multiple high-speed communication standards, suitable for various high-speed communication application scenarios.


Technical Specifications — SEAF-30-01-L-06-1-RA-GP-TR

Pitch: 1.27mm

Pin Count: 180P

Mounting Method: Surface Mount

Row Count: 6

Contact Plating: Gold

Operating Temperature Range: -50°C to +125°C

Package Type: SMD

Data Transfer Rate: Up to 56Gbps
