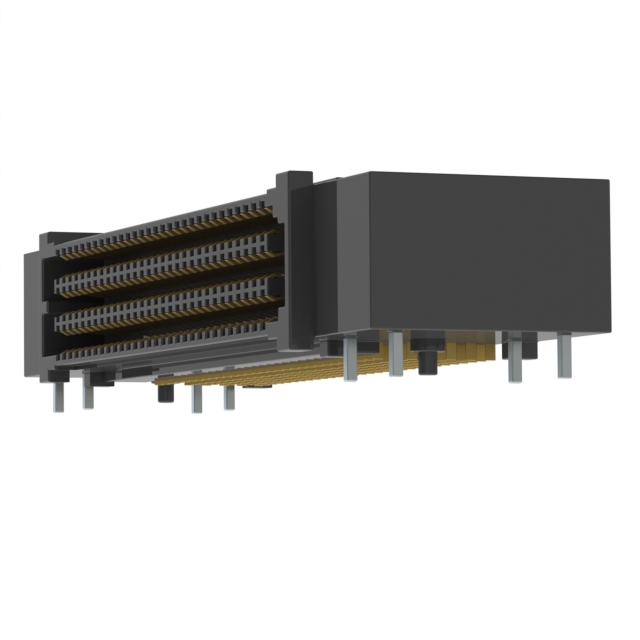

Commodity Model:SEAF-30-01-L-06-1-RA-LP-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:180POS

Delivery Date:New and Original

Stock: 1180pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-30-01-L-06-1-RA-LP-TR
Package
180POS
Describe
180-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-30-01-L-06-1-RA-LP-TR is a high-density board-to-board connector belonging to the SEARAY™ SEAF series. This connector features a right-angle surface mount (SMD) design and is suitable for high-speed signal transmission and high-density interconnect applications, such as servers, communication equipment, industrial automation, etc.


Key Features of SEAF-30-01-L-06-1-RA-LP-TR

High-density layout

180 pin positions arranged in 6 rows with a pitch of 0.050’ (1.27mm), suitable for compact PCB designs.

Right-angle (Right Angle) mounting optimises space utilisation.

High-speed signal support

Utilises Edge Rate® terminal technology to support 56Gbps PAM4 high-speed data transmission, suitable for high-frequency applications such as 5G and data centres.

Reliability and Durability

Gold-plated contacts (thickness 10.0µin / 0.25µm) enhance conductivity and oxidation resistance.

Board rails and latch design ensure stable insertion and removal.

Rated current: 1.9A, rated voltage: 240VAC/339VDC, meeting industrial-grade requirements.

Installation and Compatibility

Surface mount (SMD), supporting automated PCB assembly.

The mating stack height is not specified, but the board height is 0.411’ (10.45mm).


SEAF-30-01-L-06-1-RA-LP-TR Parameters:

Series: SEARAY™ SEAF

Connector Type: High-density array, female

Pin Count: 180

Pitch: 0.050’ (1.27mm)

Rows: 6

Mounting Type: Surface mount, right angle

Features: Board rail, latch

Contact surface treatment: Gold plating

Contact surface treatment thickness: 10.0µin (0.25µm)

Board height: 0.411’ (10.45mm)
