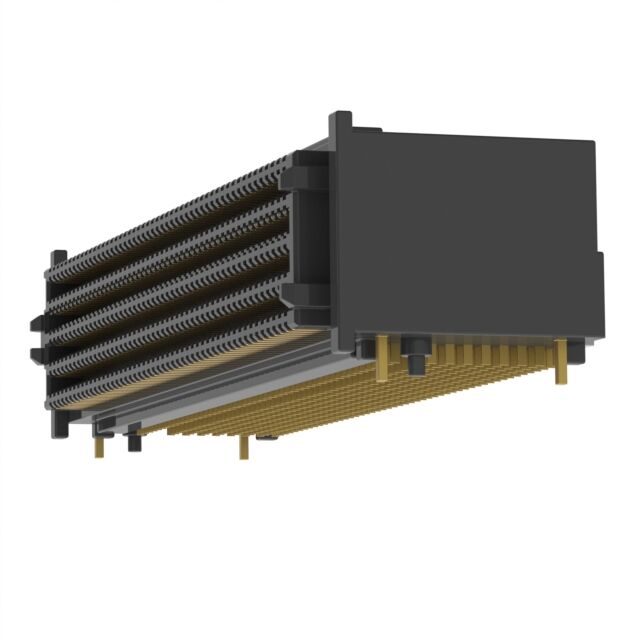

For picture reference, please see the specifications
< >

Commodity Model:SEAM-50-01-S-10-2-RA-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:500POS

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAM-50-01-S-10-2-RA-TR
Package
500POS
Describe
500-position connector, high-density array, male, surface mount, right angle, gold-plated

Product Description

SEAM-50-01-S-10-2-RA-TR is a 0.050’ (1.27mm) pitch right-angle open terminal array connector that can provide up to 500 terminals. SEAM-50-01-S-10-2-RA-TR belongs to the SEARAY™ SEAM series, specifically designed for high-speed data transmission and compact PCB interconnections.


SEAM-50-01-S-10-2-RA-TR core features:

High-density design:

500 contacts (10 rows × 50 pins) with a 0.050’ (1.27mm) pitch, suitable for high-bandwidth data transmission.

Right-angle installation for easy PCB stacking design.

High-speed signal transmission:

Utilises Edge Rate® terminal technology, supporting up to 56Gbps PAM4 signal transmission, suitable for 5G, AI computing, high-speed storage, and other applications.

Industrial-grade reliability:

Gold-plated contacts (thickness 30.0µin / 0.76µm) enhance signal integrity and corrosion resistance.

Operating temperature range: Complies with industrial standards, suitable for harsh environments.


SEAM-50-01-S-10-2-RA-TR Product Attributes:

Product Type: Board-to-Board and Interlayer Connectors

Product: Headers

Number of Positions: 500 Positions

Pitch: 1.27 mm (0.05 in)

Number of Rows: 10 Rows

Termination Type: Solder

Mounting Angle: Right Angle

Current Rating: 2.7 A

Voltage Rating: 240 VAC

Maximum Data Rate: 56 Gbps

Minimum Operating Temperature: -55°C

Maximum Operating Temperature: +125°C

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Series: SEAM-RA
