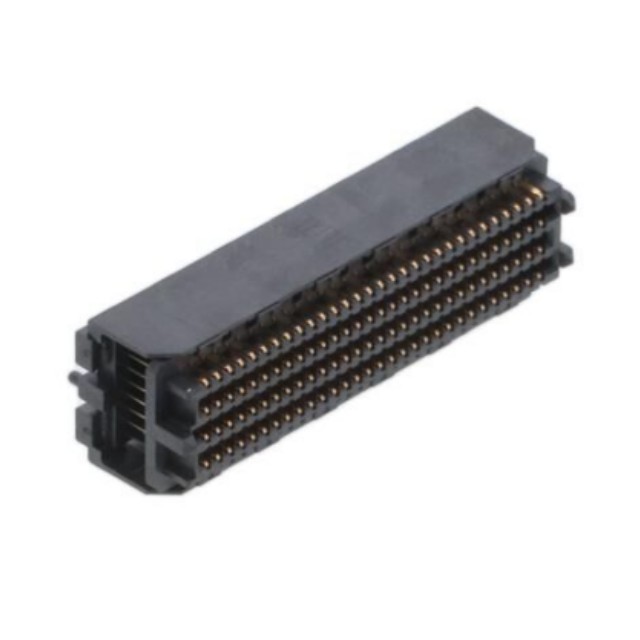

For picture reference, please see the specifications
< >

Commodity Model:SEAM-30-09.0-S-08-2-A-K-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:240POS

Delivery Date:New and Original

Stock: 1240pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAM-30-09.0-S-08-2-A-K-TR
Package
240POS
Describe
240-position connector, high-density array, male, surface mount, gold-plated

Product Description

SEAM-30-09.0-S-08-2-A-K-TR is a high-speed connector from Samtec's SEARAY™ series, featuring a 0.050-inch (1.27 mm) pitch and providing up to 240 terminals. It features a right-angle connection design and supports surface mount technology (SMT), maximising flexibility in single-ended or differential pair configurations, as well as power, signal, or ground design and routing, making it suitable for various high-speed signal transmission applications.


Product Specifications

Model: SEAM-30-09.0-S-08-2-A-K-TR

Series: SEARAY™ SEAM

Pitch: 0.050’ (1.27mm)

Number of Terminals: 240

Number of Rows: 8

Mounting Method: Surface Mount, Right-Angle

Contact Plating: Gold

Rated Current: Maximum 2.7A per contact

Rated Voltage: 240VAC

Operating Temperature Range: -55°C to 150°C

Contact Resistance: Maximum 17.1mΩ

Stack Height: 7mm to 18.5mm (optional)


Product Applications

SEAM-30-09.0-S-08-2-A-K-TR is suitable for various high-speed communication and data transmission scenarios, including but not limited to the following fields:

High-speed communication equipment: such as servers, routers, and switches, for high-density signal connections.

Data storage devices: such as hard disk arrays and storage area networks, providing reliable data transmission connections.

Test and measurement instruments: used for signal connections in high-performance test equipment.

Military and aerospace: used in applications requiring high reliability and high-density connections.
