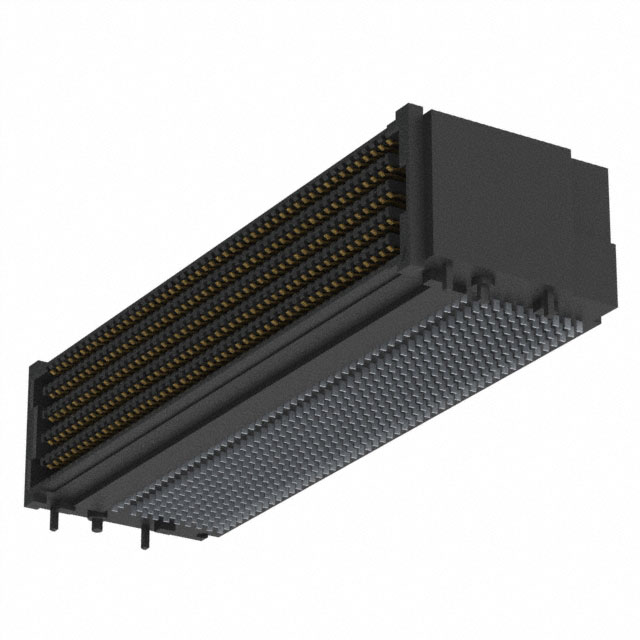

Commodity Model:SEAF-50-01-S-10-2-RA-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:500POS

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-50-01-S-10-2-RA-TR
Package
500POS
Describe
500-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-50-01-S-10-2-RA-TR is a high-density board-to-board connector belonging to the SEARAY™ SEAF series, with a pitch of 0.050 inches (1.27 mm) and a maximum of 500 terminals. This connector features a right-angle surface mount design, optimised for high-speed data transmission and compact PCB interconnect applications, and is widely used in data centres, communication equipment, industrial automation, and other fields.


Product Features — SEAF-50-01-S-10-2-RA-TR

High-density array: Supports up to 500 terminals to meet high-density wiring requirements.

Flexible Configuration: Supports single-ended or differential pair configurations to accommodate various circuit design requirements.

Excellent Electrical Performance: Low crosstalk and low insertion loss ensure the integrity of high-speed signals.

Reliable Mechanical Performance: Robust design and high-durability contacts ensure reliable connections.

High Compatibility: Compatible with various PCB layouts and designs, facilitating integration into different systems.

High-Speed Transmission Capability: Supports a rated data transmission rate of up to 56 Gbps.


Product Attributes — SEAF-50-01-S-10-2-RA-TR

Product Type: Board-to-Board and Interlayer Connectors

Product: Headers

Position Count: 500 Position

Pitch: 1.27 mm (0.05 in)

Row Count: 10 Row

Termination Type: Solder

Mounting Angle:    Right Angle

Stack Height:    7 mm

Current Rating:    2.7 A

Voltage Rating:    240 VAC

Minimum Operating Temperature:    -55°C

Maximum Operating Temperature:    +125°C

Contact Plating:    Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Series: SEAF-RA

Associated Products

Model

Brand

Package

Quantity

Describe

SEAF-40-01-L-08-1-RA-GP-TR

Samtec

320POS

1320

320-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-40-01-L-06-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-LP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-08-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAM-50-01-S-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, male, surface mount, right angle, gold-plated

SEAM-30-09.0-S-08-2-A-K-TR

Samtec

240POS

1240

240-position connector, high-density array, male, surface mount, gold-plated
