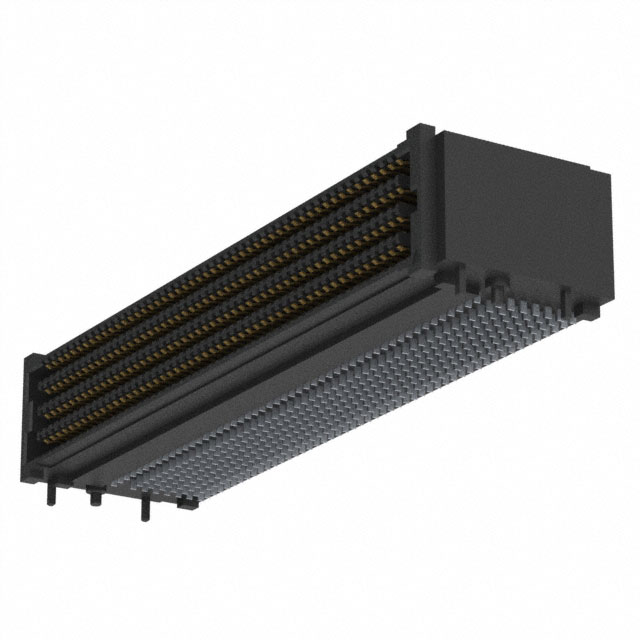

Commodity Model:SEAF-50-01-S-08-2-RA-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:400POS

Delivery Date:New and Original

Stock: 1400pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-50-01-S-08-2-RA-TR
Package
400POS
Describe
400-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-50-01-S-08-2-RA-TR is a high-speed connector from Samtec's SEARAY™ series, featuring a 0.050-inch (1.27 mm) pitch and supporting up to 400 terminals. It employs a right-angle connection design and supports surface mount technology (SMT), maximising flexibility in single-ended or differential pair configurations, as well as power, signal, or ground design and routing, making it suitable for various high-speed signal transmission applications.


SEAF-50-01-S-08-2-RA-TR Features

High-density array: Supports up to 400 terminals to meet high-density routing requirements.

Flexible Configuration: Supports single-ended or differential pair configurations to accommodate different circuit design requirements.

Excellent Electrical Performance: Low crosstalk and low insertion loss ensure the integrity of high-speed signals.

Reliable Mechanical Performance: Robust design and high-durability contacts ensure reliable connections.

High Compatibility: Compatible with various PCB layouts and designs, facilitating integration into different systems.

High-Speed Transmission Capability: Supports a rated data transmission rate of up to 56 Gbps.


SEAF-50-01-S-08-2-RA-TR Specifications

Series: SEARAY™ SEAF

Pitch: 0.050’ (1.27mm)

Number of terminals: Up to 400

Number of rows: 8

Mounting method: Surface mount, right angle

Contact plating: Gold

Rated current: Maximum 2.7A per contact

Rated voltage: 240VAC

Operating temperature range: -55°C to 125°C

Contact resistance: Maximum 17.1mΩ

Board height: 0.511’ (12.99mm)


SEAF-50-01-S-08-2-RA-TR Applications

High-speed communication equipment: such as servers, routers, and switches, for high-density signal connections.

Data storage equipment: such as hard disk arrays and storage area networks, providing reliable data transmission connections.

Test and measurement instruments: for signal connections in high-performance test equipment.

Military and aerospace: used in applications requiring high reliability and high-density connections.

Associated Products

Model

Brand

Package

Quantity

Describe
