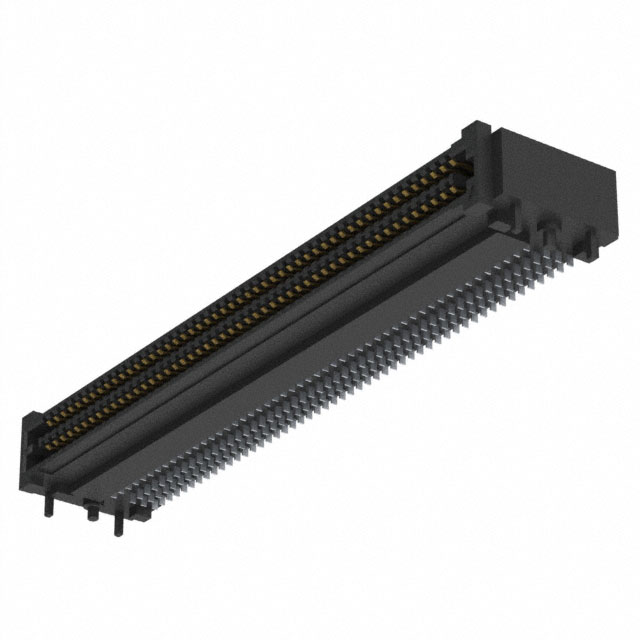

SEAF-50-01-S-04-2-RA-TR is a high-density, high-speed signal transmission connector with a pitch of 0.050 inches (1.27 mm) and can provide up to 500 terminals. It employs a right-angle connection design and supports surface mount technology (SMT), maximising flexibility in single-ended or differential pair configurations, as well as power, signal, or ground design and routing.

Features (SEAF-50-01-S-04-2-RA-TR)

High-density array: Supports up to 500 terminals to meet high-density routing requirements.

Flexible Configuration: Supports single-ended or differential pair configurations to accommodate various circuit design requirements.

Excellent Electrical Performance: Low crosstalk and low insertion loss ensure the integrity of high-speed signals.

Reliable Mechanical Performance: Robust design and high-durability contacts ensure reliable connections.

High Compatibility: Compatible with various PCB layouts and designs, facilitating integration into different systems.

High-Speed Transmission Capability: Supports a rated data transmission rate of up to 56 Gbps.

Technical Specifications (SEAF-50-01-S-04-2-RA-TR)

Series: SEARAY™ SEAF

Packaging: Tape and Reel (TR)

Part Status: In Stock

Connector Type: High-Density Array, Female

Pin Count: 200

Pitch: 0.050’ (1.27mm)

Row Count: 4

Mounting Type: Surface Mount, Right Angle

Features: Board Rail

Contact Surface Treatment: Gold Plated

Contact Surface Treatment Thickness: 30.0µin (0.76µm)

Board Height: 0.311’ (7.90mm)

Typical Applications (SEAF-50-01-S-04-2-RA-TR)

Data Centres: High-speed interconnections for servers, switches, and storage devices

Industrial Automation: PLCs, robotics control, high-density PCB connections

Communication Equipment: 5G base stations, optical modules, routers

Medical Electronics: High-precision medical imaging equipment, portable monitors
