Commodity Model:SEAF-50-01-L-10-2-RA-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:500POS

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-50-01-L-10-2-RA-TR
Package
500POS
Describe
500-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

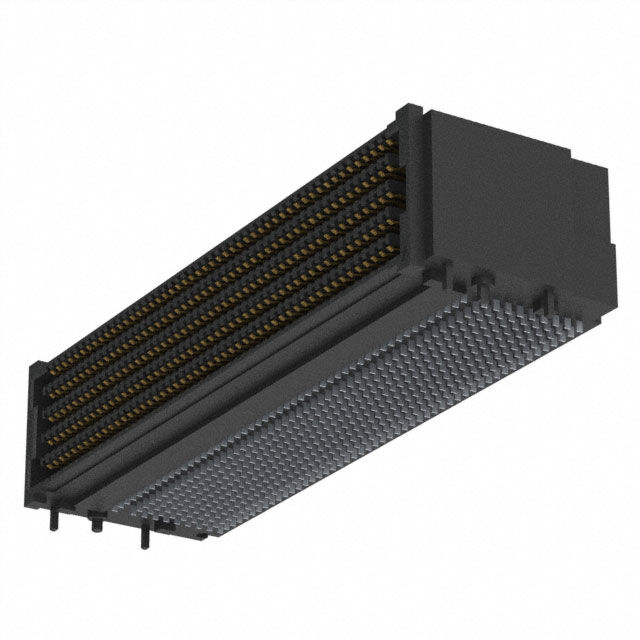

SEAF-50-01-L-10-2-RA-TR is a right-angle open terminal array connector with a pitch of 0.050’ (1.27mm) and can provide up to 500 terminals. It uses surface mount technology and features high density, high bandwidth, and low crosstalk, making it suitable for a variety of high-speed signal transmission applications.


Functional Features — SEAF-50-01-L-10-2-RA-TR

High-density array: Provides up to 500 terminals to meet high-density wiring requirements.

Flexible configuration: Supports single-ended or differential pair configurations to accommodate different circuit design needs.

Excellent electrical performance: Low crosstalk and low insertion loss ensure the integrity of high-speed signals.

Reliable Mechanical Performance: Robust design and high-durability contacts ensure reliable connections.

High Compatibility: Compatible with various PCB layouts and designs, facilitating integration into different systems.


Technical Specifications — SEAF-50-01-L-10-2-RA-TR

Pitch: 0.050’ (1.27mm)

Number of Terminals: Up to 500

Number of Rows: 10

Mounting method: Surface mount, right angle

Contact plating: Gold

Rated current: Maximum 1.9A per contact

Rated voltage: 280VAC

Operating temperature range: -55°C to 125°C

Contact resistance: Maximum 17.1mΩ


Application areas

High-speed communication equipment: Such as servers, routers, and switches, for high-density signal connections.

Data storage equipment: such as hard disk arrays and storage area networks, providing reliable data transmission connections.

Test and measurement instruments: used for signal connections in high-performance test equipment.

Military and aerospace: used in applications requiring high reliability and high-density connections.
