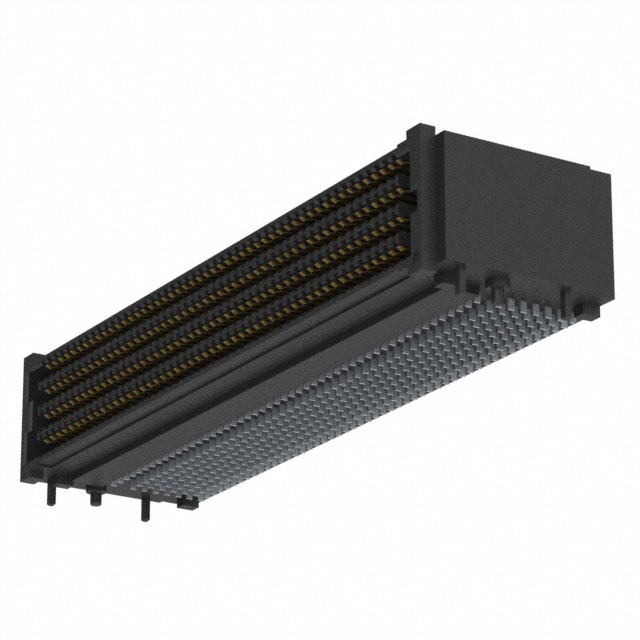

Commodity Model:SEAF-50-01-L-08-2-RA-TR

Trade Name:Board-to-Board Connector

Brand:Samtec

Particular Year:25+

Package:400POS

Delivery Date:New and Original

Stock: 1400pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
SEAF-50-01-L-08-2-RA-TR
Package
400POS
Describe
400-position connector, high-density array, female, surface mount, right angle, gold-plated

Product Description

SEAF-50-01-L-08-2-RA-TR is a high-density right-angle socket connector belonging to the SEARAY™ SEAF series, specifically designed for high-speed data transmission and high-density interconnect applications. This connector features a 1.27mm pitch grid and gold-plated contacts, suitable for board-to-board and interlayer connections, and is widely used in data centres, communication equipment, industrial control, and other fields.


SEAF-50-01-L-08-2-RA-TR Features

High-Density Design:

400 single-ended I/O ports, supporting 8 rows of pins with a pitch of 0.050’ (1.27mm).

Right-angle (Right Angle) installation, suitable for compact PCB layouts.

High-Speed Data Transmission:

Utilises the Edge Rate® terminal system, supporting up to 56Gbps PAM4 signal transmission, suitable for 5G, AI computing, high-speed storage, and other applications.

Industrial-grade reliability:

Gold-plated contacts (thickness 10.0µin / 0.25µm) enhance conductivity and corrosion resistance.

Operating temperature range: -55°C to +125°C, suitable for harsh environments.

Compliant with IPC-A-610F and IPC J-STD-001F standards to ensure soldering quality.

Low insertion force design: Optimised terminal structure reduces mechanical stress during insertion/removal, extending connector lifespan.

Surface Mount (SMD): Suitable for automated PCB assembly to improve production efficiency.


SEAF-50-01-L-08-2-RA-TR Product Attributes

Product Type: Board-to-Board and Interlayer Connectors

Product: Headers

Number of Positions: 400 Positions

Pitch: 1.27 mm (0.05 in)

Number of Rows: 8 Rows

Termination Type: Solder

Mounting Angle: Right Angle

Stack Height:    7 mm

Current Rating:    2.7 A

Voltage Rating:    240 VAC

Minimum Operating Temperature:    -55°C

Maximum Operating Temperature:    +125°C

Contact Plating:    Gold

Contact Material:    Copper Alloy

Housing Material:    Liquid Crystal Polymer (LCP)

Series: SEAF-RA

Associated Products

Model

Brand

Package

Quantity

Describe

SEAF-40-01-L-08-1-RA-GP-TR

Samtec

320POS

1320

320-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-40-01-L-06-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-LP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-08-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAM-50-01-S-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, male, surface mount, right angle, gold-plated

SEAM-30-09.0-S-08-2-A-K-TR

Samtec

240POS

1240

240-position connector, high-density array, male, surface mount, gold-plated
