For picture reference, please see the specifications
< >

Commodity Model:APM6-100-01.5-L-04-2-A-TR

Trade Name:Board to Board Connectors

Brand:Samtec

Particular Year:25+

Package:400POS

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
APM6-100-01.5-L-04-2-A-TR
Package
400POS
Describe
0.635 mm AcceleRate® HP High-Performance Array Terminal

Product Description

APM6-100-01.5-L-04-2-A-TR is 0.635 mm AcceleRate® HP High-Performance Array Terminal Board to Board Connectors.


These 0.635 mm pitch arrays feature extreme performance to 112 Gbps PAM4 and an open-pin-field design for grounding and routing flexibility. This cost-optimized solution features up to 800 total pins (roadmap to 1,000+) in a low 5 mm stack height (and up to 10 mm), with data rate compatibility to PCIe® 6.0/CXL® 3.2 and 100 GbE.


Feature Of APM6-100-01.5-L-04-2-A-TR

56 Gbps NRZ/112 Gbps PAM4 performance

Data rate compatible with PCIe® 6.0/CXL® 3.2 and 100 GbE

Up to 800 total pins available; roadmap to 1,000+ pins

Open-pin-field design for grounding and routing flexibility

Low-profile 5 mm and up to 10 mm stack heights

Current rating: 1.2 A max

Voltage rating: 150 VAC/212 VDC max

Analog Over Array™ capable


Associated Products

Model

Brand

Package

Quantity

Describe

SEAF-40-01-L-08-1-RA-GP-TR

Samtec

320POS

1320

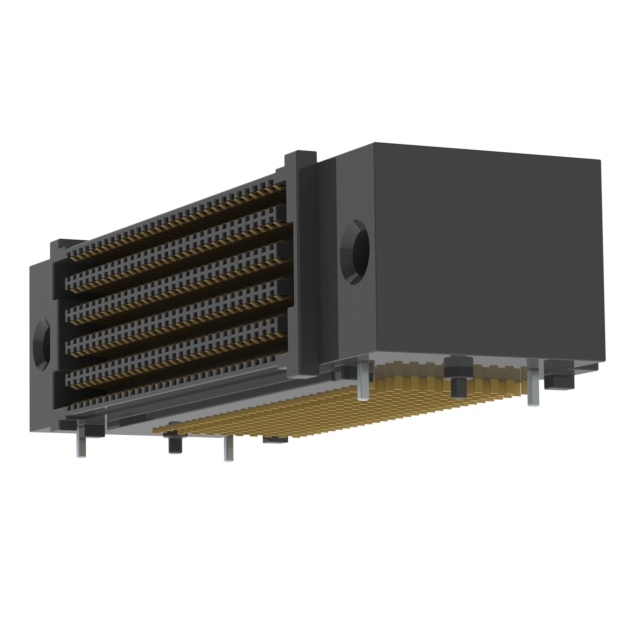

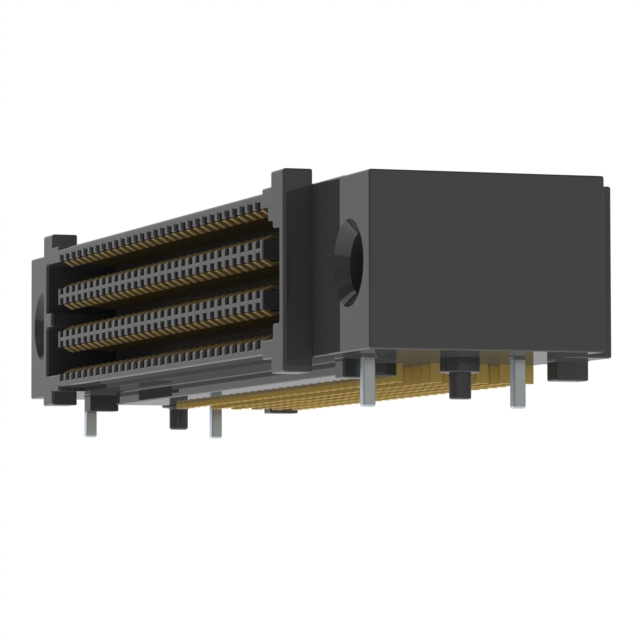

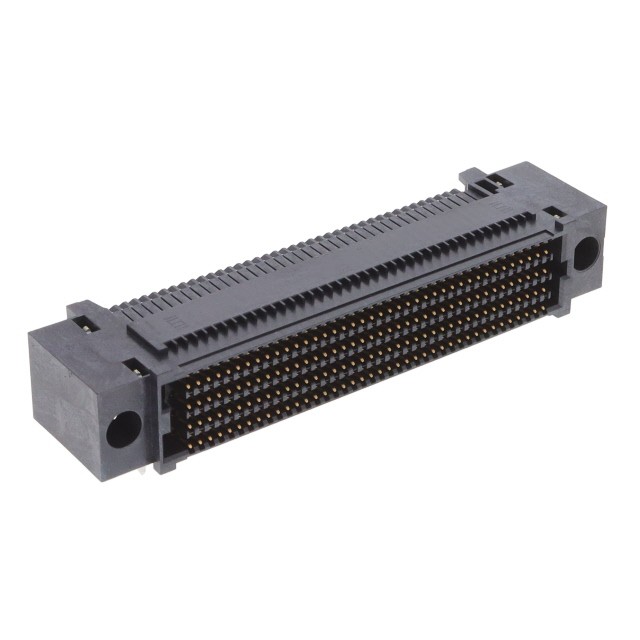

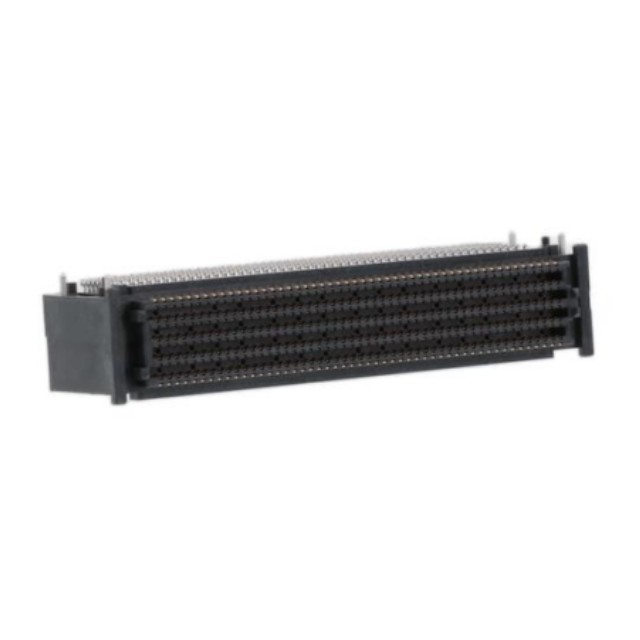

320-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-40-01-L-06-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-LP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-08-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAM-50-01-S-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, male, surface mount, right angle, gold-plated

SEAM-30-09.0-S-08-2-A-K-TR

Samtec

240POS

1240

240-position connector, high-density array, male, surface mount, gold-plated
