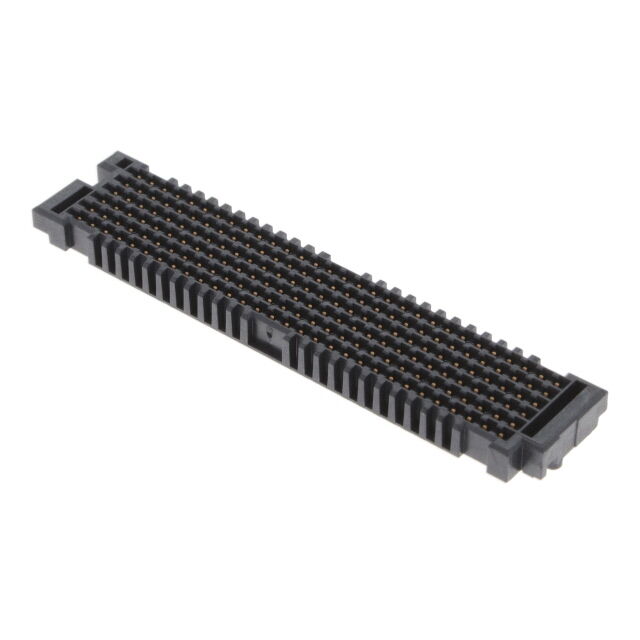

For picture reference, please see the specifications
< >

Commodity Model:LPAF-30-03.0-L-06-2-K-TR

Trade Name:Board To Board Connectors

Brand:Samtec

Particular Year:25+

Package:180POS

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
LPAF-30-03.0-L-06-2-K-TR
Package
180POS
Describe
180POS, LP Array™ High Speed High Density Slimline Terminal Open Terminal Array

Product Description

LPAF-30-03.0-L-06-2-K-TR: .050’ LP Array™ High Speed High Density Slimline Terminal Open Terminal Array, Receptacle


Basic Information:

Model: LPAF-30-03.0-L-06-2-K-TR

Series: LP Arrary™

Package: 180POS

Type: board-to-board connector

Connector Type: Female Socket Array

Number of Positions: 180

Pitch: 0.050’ (1.27mm)

Number of rows: 6

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stacking Height: 4mm, 4.5mm

On-Board Height: 0.110’ (2.79mm)


LPAF-30-03.0-L-06-2-K-TR Product Features:

56 Gbps PAM4 Performance

Slim 4 mm, 4.5 mm, 5 mm stack heights

Up to 400 I/O ports

4, 6, and 8-row designs

.050’ (1.27 mm) pitch

Dual beam terminal system

Current rating: 2.2 A maximum

Voltage rating: 250 VAC/354 VDC maximum

Solder crimp pins for easy processing

Analog Over Array™ Capability


Associated Products

Model

Brand

Package

Quantity

Describe

SEAF-40-01-L-08-1-RA-GP-TR

Samtec

320POS

1320

320-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-40-01-L-06-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-S-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-10-1-RA-GP-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-GP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-06-1-RA-LP-TR

Samtec

180POS

1180

180-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-30-01-L-08-1-RA-GP-TR

Samtec

240POS

1240

240-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAM-50-01-S-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, male, surface mount, right angle, gold-plated

SEAM-30-09.0-S-08-2-A-K-TR

Samtec

240POS

1240

240-position connector, high-density array, male, surface mount, gold-plated
