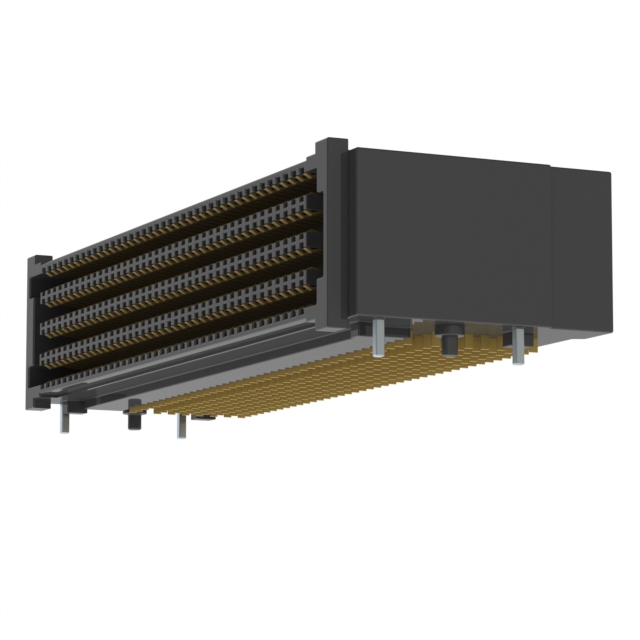

SEAF-40-01-S-08-2-RA-K-TR is a high-density board-to-board connector manufactured by Samtec Inc., part of the SEARAY™ SEAF series, specifically designed for high-speed data transmission and compact PCB interconnections. This connector features surface mount (SMD) right-angle mounting, gold-plated contacts, and a high-reliability structure, making it suitable for applications in communication equipment, industrial control, medical electronics, and other fields.

SEAF-40-01-S-08-2-RA-K-TR Product Specifications

Series:    SEARAY™ SEAF

Packaging:    Tape and Reel (TR) or Cut Tape (CT)

Pin Count:    320 (8 rows × 40 pins)

Pitch:    1.27mm (0.050")

Mounting Method:    Surface Mount (SMD), Right Angle

Contact Plating:    Gold Plated (0.76µm)

Rated Current:    2.7A

Rated Voltage:    240V AC

Operating temperature: -55°C to +125°C (industrial grade)

SEAF-40-01-S-08-2-RA-K-TR Product Features

High-density design: With a pitch of 0.050’ (1.27 mm), it can provide up to 500 terminals, enabling high-density signal connections, suitable for applications with limited space but requiring extensive signal transmission.

High-Performance Transmission: Supports data transfer rates up to 56 Gbps, utilizing Samtec's Edge Rate® terminal system to ensure stable electrical performance and reliability during high-speed signal transmission.

Multiple Configuration Options: Available in single-ended or differential pair configurations, as well as various options for power, signal, or ground, allowing flexible selection based on specific application requirements.

High Compatibility: Compatible with other Samtec SEARAY™ product series, enabling integration with other connectors and accessories to build flexible high-speed interconnect solutions.
