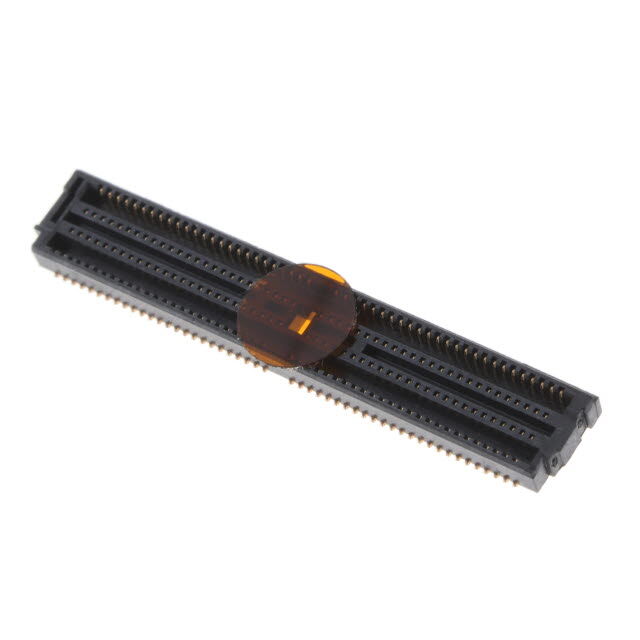

LTH-050-01-G-D-A-K-TR: 0.50mm, Low Profile Blade and Beam Terminal Strip

Product Details:

Model: LTH-050-01-G-D-A-K-TR

Package: 100POS

Type: Board-to-Board Connector

Overview:

0.50mm miniature blade and beam fine pitch connectors with ultra-low stacking heights down to 2.00 mm, featuring an ultra-slim, ultra-thin design for further board space savings.

Product Features:

- 14 Gbps performance

- Ultra-low 2.31 mm (.091") mating stack height

- Five standard pin positions, up to 100 I/O terminals

- Current rating: 2.6 A maximum

- Rated voltage: 188 VAC/266 VDC max.

- Standard Locating Pin Function

LTH-050-01-G-D-A-K-TR Specifications:

Connector Type: Header, Shell Contacts

Number of pin positions: 100

Pitch: 0.020’ (0.50mm)

Mounting Type: Surface Mount

Features: Board Guide, Pick and Place

Contact Finish: Gold Plated

Contact Finish Thickness: 10.0µin (0.25µm)

Contact Stack Height: 2.31mm

On-Board Height: 0.066’ (1.68mm)
