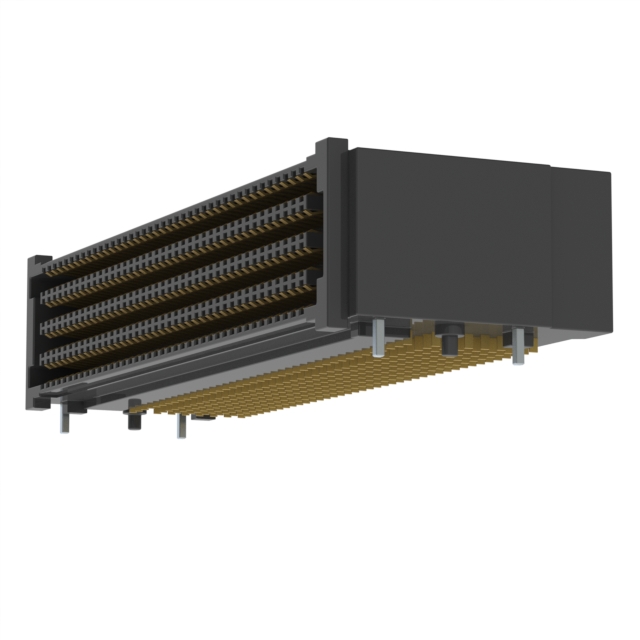

Samtec's SEAF-40-01-L-08-2-RA-K-TR is a high-density array edge-type interlayer connector belonging to the SEARAY™ SEAF series, specifically designed for board-to-board interconnections. This connector features a surface mount (SMD) right-angle mounting configuration, providing high-reliability electrical connections suitable for compact electronic devices such as communication equipment, industrial control systems, medical instruments, and more.

SEAF-40-01-L-08-2-RA-K-TR Core Features

1. High-density interconnect design

Pin count: 400 (8 rows × 50 pins)

Pitch: 0.050’ (1.27mm), optimising PCB space utilisation

Connector type: High-density array, female (receptacle), suitable for board-to-board through-hole connection

2. High-reliability structure

Contact surface treatment: Gold plating (10.0μin / 0.25μm), ensuring low contact resistance and oxidation resistance

Housing material: LCP (liquid crystal polymer), high-temperature resistant and high mechanical strength

Board rail & latch design, enhancing insertion/removal stability

3. Flexible installation methods

Mounting Type: Surface Mount (SMD), Right Angle, suitable for compact space layouts

Pick-and-Place compatible, facilitating automated assembly

4. Electrical Performance

Rated Current: 2.7A per contact, suitable for power and signal transmission

Rated Voltage: 240V AC, meeting industrial-grade application requirements

SEAF-40-01-L-08-2-RA-K-TR Key Parameters

Manufacturer: Samtec Inc.

Series: SEARAY™ SEAF

Pin Count: 400 (8 rows × 50 pins)

Pitch: 1.27mm (0.050")

Mounting Method: Surface Mount (SMD), Right Angle

Contact Plating: Gold-plated (0.25μm)

Rated Current: 2.7A

Rated Voltage: 240V AC

Operating Temperature: -40°C to +105°C (industrial-grade)
