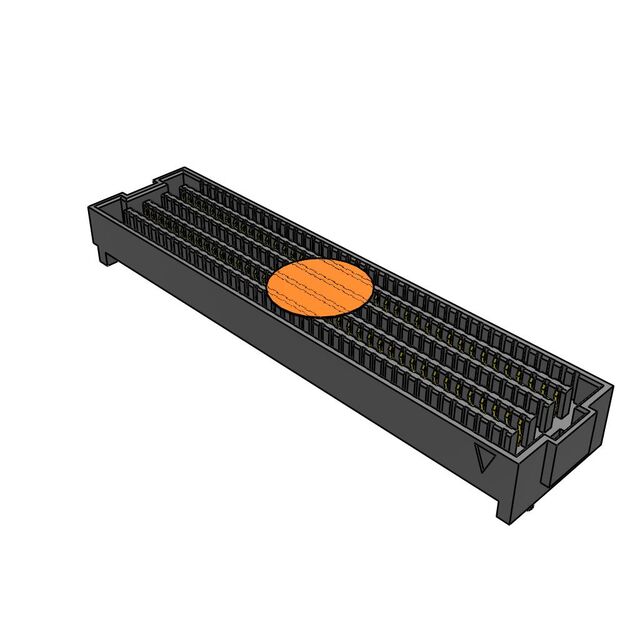

ASP-134603-04: 160POS, Board-to-Board Connector - .050’ SEARAY™ High-Speed, High-Density Termination Open Terminal Array Receptacle

SEARAY™ is an open terminal array .050’ (1.27 mm) pitch connector.SEARAY™ provides up to 500 terminals to maximise design and wiring flexibility for single-ended or differential pair configurations as well as power, signal or ground.SEARAY™ uses the Edge Rate® termination system, which is designed for connectors that require high docking cycles and 56 Gbps PAM4 performance.The SEAF features SureCoat™ palladium-nickel and flash gold plating and is Extended Life Product™ certified to withstand 5.000 cycles and 150º operating temperature.

Below are the product details for connector ASP-134603-04:

Model: ASP-134603-04

Package: 160POS

Type: Board-to-Board Connector

Product Features:

56 Gbps PAM4 Performance

.050’ (1.27 mm) pitch

Up to 500 I/O ports

Ruggedised Edge Rate® terminals

Current rating: 2.7 A maximum

Voltage rating: 240 VAC/339 VDC maximum

Stack heights from 7 mm to 18.5 mm

Reduced insertion/extraction force

Surface soldered pins
