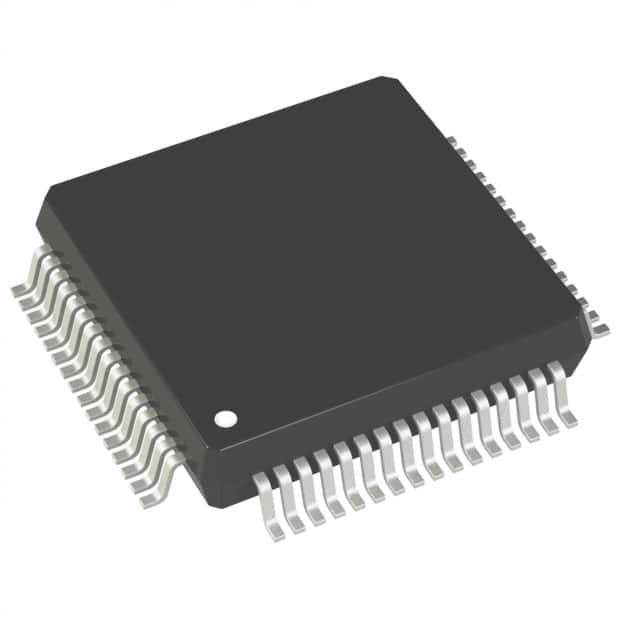

The STM32F303RBT6 microcontroller is a 32-bit MCU based on the ARM Cortex-M4 core with a main frequency as high as 72MHz. This chip is equipped with a built-in floating-point unit (FPU) and supports the DSP instruction set, making it suitable for applications that require high-performance digital signal processing. In addition, the STM32F303RBT6 integrates a rich array of peripheral interfaces, including multiple ADCs, comparators, operational amplifiers, DAC channels, timers, and a variety of communication interfaces (such as I2C, SPI, USART, CAN, and USB) for industrial control, medical devices, and more ‌.

The STM32F303RBT6 single-chip microcomputer has the following main specifications:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 72MHz

Connection capabilities: CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB

Peripheral devices: DMA, I2S, POR, PWM, WDT

I/O number: 52

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage - Power Supply (Vcc/Vdd) : 2V to 3.6V

Data converter: A/D 22x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 64-LQFP (10x10)

Application scenarios

The STM32F303RBT6 microcontroller is widely used in various embedded systems, including:

Smart home system ‌ : As the master controller, processes user input, controls appliances and communicates with other devices ‌.

Industrial automation ‌ : Control the movement of robot arms to achieve precise positioning and action ‌.

Motor control ‌ : Timer for motor control to achieve precise motor control ‌.

Internet of Things devices ‌ : Collect and process sensor data for intelligent monitoring and management ‌.
