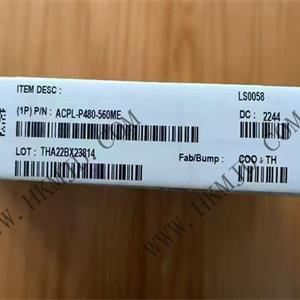

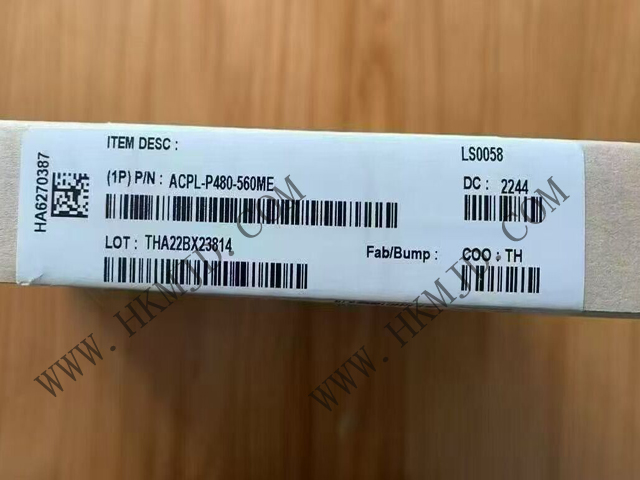

The ACPL-P480-560ME is a high-speed optocoupler belonging to the High Common Mode Rejection Ratio (CMR) Intelligent Power Module and Gate Driver Interface Optocoupler series.

ACPL-P480-560ME Product Features

High Common Mode Rejection: With very high Common Mode Rejection Ratio (CMR), it can effectively suppress noise interference and ensure the stability of signal transmission.

Logic-compatible output: Built-in Schmitt trigger provides output waveforms compatible with logic levels, eliminating the need for additional waveform shaping circuitry.

Totem pole output: Adopting totem pole output structure without pull-up resistor, it can directly drive intelligent power module or gate driver circuit, simplifying the circuit design.

Short propagation delay: With a short propagation delay, it helps to reduce the switching dead time of the inverter and improve the inverter efficiency.

Minimum Pulse Width Distortion: Small Pulse Width Distortion (PWD) ensures the accuracy of signal transmission.

Hysteresis Function: Equipped with hysteresis function to improve signal stability and anti-interference capability.

Package: Extended SO-6 package saves space and is easy to install.

Safety approvals: UL 1577 listed with isolation voltage of 3750Vrms (1 minute) and 5000Vrms (1 minute) with some options.

ACPL-P480-560ME Product Parameters

Operating Voltage: Maximum reverse voltage on the input side is 5V, and the supply voltage on the output side ranges from 4.5V to 20V.

Current parameters: Average input current is 10mA, peak transient input current (<1μs pulse width, 300pps) is 40mA; average output current is 25mA.

Power Parameters: Total package power consumption is 210mW.

Temperature Range: Operating temperature range is -40°C to +100°C and storage temperature range is -55°C to +125°C.

Electrical Performance: Input diode forward voltage is 1.7V typical and 1.85V maximum at 25°C and 6mA; logic low output voltage is 0.5V maximum at 6.5mA output current.

ACPL-P480-560ME Application Areas

IPM Interface Isolation: Used for interface isolation of Intelligent Power Modules (IPM) to ensure reliable transmission of control signals.

Isolated IGBT/MOSFET Gate Drive: For isolating gate drive circuits of Insulated Gate Bipolar Transistors (IGBT) and Metal Oxide Semiconductor Field Effect Transistors (MOSFET).

Motor Drive: Widely used in AC motor and brushless DC motor drive systems, providing reliable signal isolation and transmission.

Industrial Inverters: Used in industrial inverters for signal isolation and gate drive to improve system stability and safety.

General Digital Isolation: Suitable for a variety of occasions that require digital signal isolation to ensure stable signal transmission.
