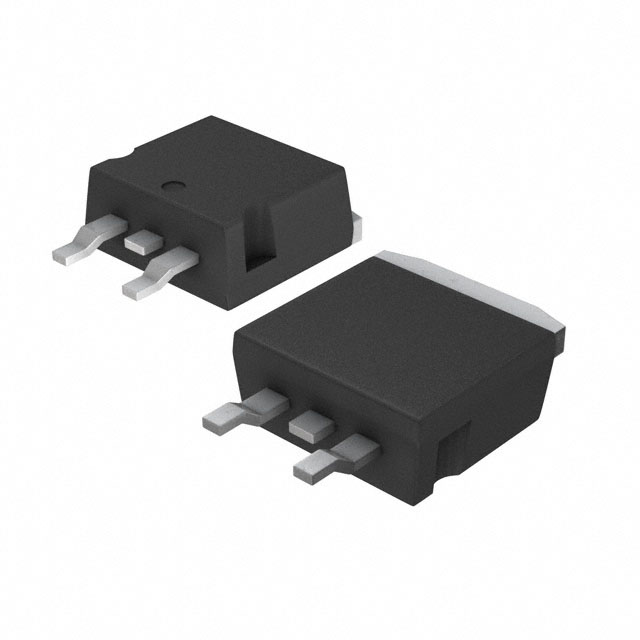

The STGB10NC60HDT4 adopts advanced PowerMESH technology to ensure a good balance between switching performance and low-on-state behavior. This technique gives STGB10NC60HDT4 a low voltage drop (VCE(sat)) on conduction and no suspicion of cross-conduction, with very soft and fast recovery characteristics ‌. Its technical specifications and application fields are as follows:

Technical Specification

IGBT type: -

Voltage - Emitter breakdown (maximum value) : 600 V

Current - Collector (Ic) (maximum value) : 20 A

Current-collector pulse (Icm) : 30 A

Vce(on) (maximum value) at different Vge and Ic: 2.5V @ 15V, 5A

Power - Maximum: 65 W

Switching energy: 31.8µJ (on), 95µJ (off)

Input type: Standard

Gate charge: 19.2 nC

Td (on/off) value at 25°C: 14.2ns/72ns

Test conditions: 390V, 5A, 10 ohms, 15V

Reverse recovery time (trr) : 22 ns

Operating temperature: -55°C to 150°C (TJ)

Installation type: Surface mount type

Package/Shell: D2PAK-3

Application field

STGB10NC60HDT4 is suitable for the following application scenarios:

High frequency motor control ‌ : Due to its fast switching performance, suitable for high frequency motor control.

SMPS and PFC‌ : Excel in hard-switching and resonant topologies.

Motor drive ‌ : Used in motor drives to provide efficient motor control.
