The MC56F81648VLH controller (DSC) family is based on the 32-bit 56800EX core. Each device combines the processing power of a DSP with the functionality of an MCU and a flexible set of peripherals on a single chip. The DSCs, based on the 32-bit 56800EX core, feature a unified C-efficient architecture for DSP and MCU functionality in fast mode, with up to 100 MIPS at 100 MHz, and on-chip memory up to 128 KB Flash, up to 20 KB data/program RAM, on-chip Flash, and on-chip memory up to 20 KB data/program RAM. On-chip memory up to 128 KB Flash, up to 20 KB data/program RAM, on-chip Flash and RAM can be mapped to program and data memory space.

Product Attributes

Type

Interface: I²C, SCI, SPI

Clock rate: 100MHz

Non-volatile memory: Flash (64kB)

On-chip RAM: 12kB

Voltage - I/O: 3.30V

Voltage - Core: 3.30V

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

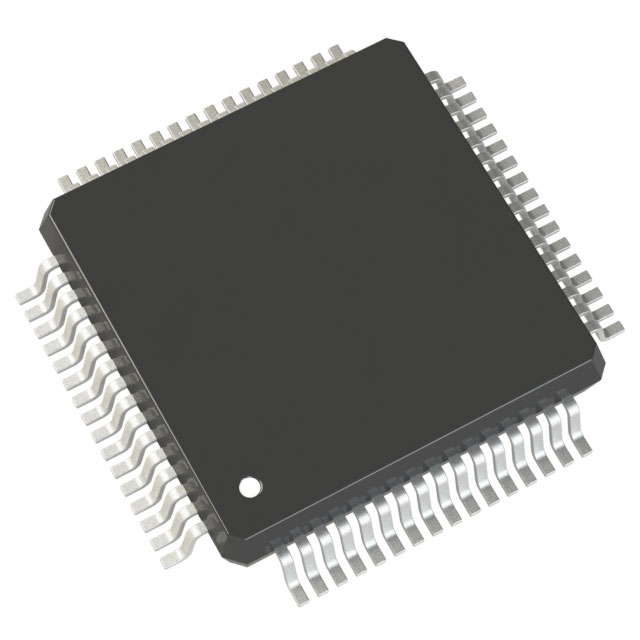

Package/Case: 64-LQFP

Supplier Device Package: 64-LQFP (10x10)

Applications:

• Motion Control

• Household appliances

• General purpose inverters

• Smart sensors, fire and security systems

• Wireless charging

• Switch-mode power supplies and power management
