The MC56F81768VLH 32-bit Digital Signal Controller (DSC) is based on the 32-bit 56800EX core.The MC56F81768VLH core has a number of features including three internal address buses, four internal data buses, 32-bit data access and 20 addressing modes.The MC56F81768VLH 32-bit DSC combines DSP processing power and MCU functionality on a single chip. DSP processing power and MCU functionality on a single chip. These digital signal controllers feature on-chip memory, PWM and timers, communication interfaces, security and integrity, and a number of clocks.The MC56F81768VLH 32-bit DSC features a range of flexible peripherals to support applications such as industrial control, home appliances, smart sensors and wireless charging.

Product Attributes

Type: -

Interface: I²C, SCI, SPI

Clock rate: 100MHz

Non-volatile memory: Flash (128kB)

On-chip RAM: 20kB

Voltage - I/O: 3.30V

Voltage - Core: 2.7V, 3.6V

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

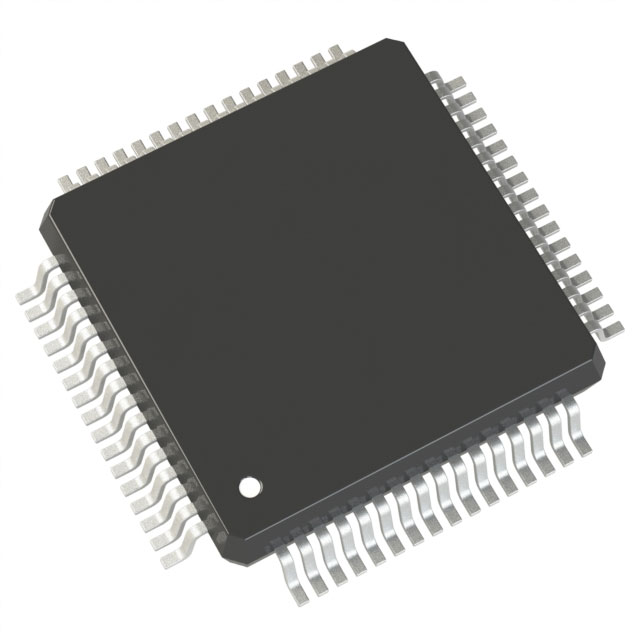

Package/Case: 64-LQFP

Supplier Device Package: 64-LQFP (10x10)

Applications

• Industrial Controls

• Household appliances

• Smart sensors

• Fire and security systems

• Motor control (ACIM, BLDC, PMSM, SR and stepper motors)

• Switch-mode power supplies and power management

• Uninterruptible Power Supplies (UPS)

• Solar and wind turbines

• Electricity metering

• Handheld power tools

• Circuit breakers

• Medical Devices/Equipment

• Instrumentation

• Lighting
