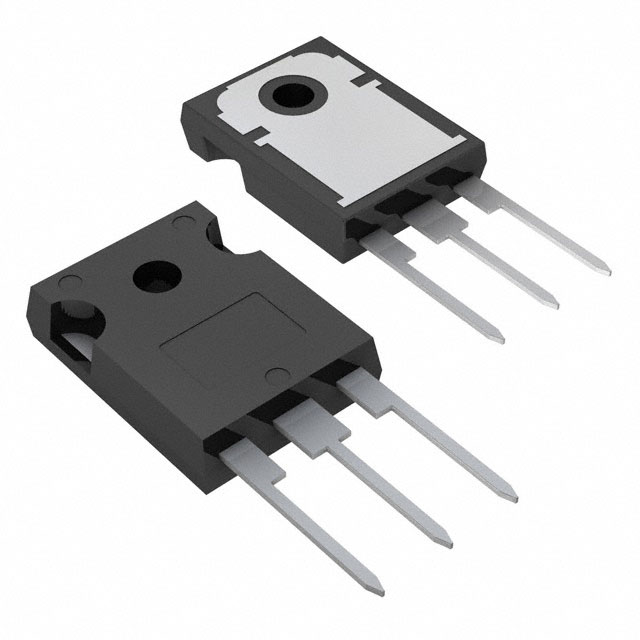

The STGWA60H65DFB is A 650 V, 60 A high-speed trench gate field cut-off IGBT device. It is developed using an advanced proprietary trench gate field operation structure, aiming to achieve the best trade-off between conduction and switching losses to enhance the efficiency of any frequency converter. Its technical specifications and typical applications are as follows:

Technical Specification

IGBT type: Grooved field cut-off

Voltage - Emitter breakdown (maximum value) : 650 V

Current - Collector (Ic) (maximum value) : 80 A

Current-collector pulse (Icm) : 240 A

Vce(on) (maximum value) at different Vge and Ic: 2V @ 15V, 60A

Power - Maximum: 375 W

Switching energy: 1.59mJ (on), 900µJ (off)

Input type: Standard

Gate charge: 306 nC

Td (on/off) value at 25°C: 66ns/210ns

Test conditions: 400V, 60A, 10 ohms, 15V

Reverse recovery time (trr) : 60 ns

Operating temperature: -55°C to 175°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

Typical applications

The STGWA60H65DFB IGBT is widely used in the following fields:

Solar inverters ‌ : Suitable for serial and central solar inverters

Ac-dc converter ‌ (AC-DC converter) : for efficient power conversion

These application fields benefit from the high efficiency, low loss and reliable parallel operation characteristics of the STGWA60H65DFB.
