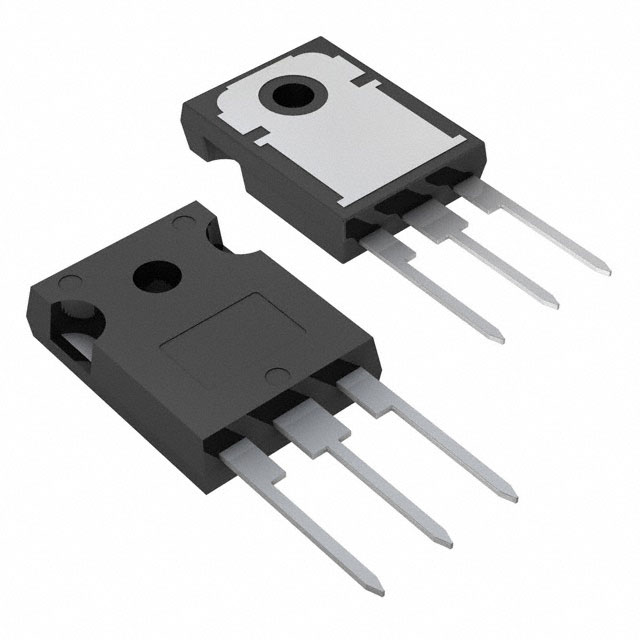

The STGW40H65DFB is A 650 V, 40 A high-speed trench gate field-stop HB series IGBT. This product features an advanced proprietary trench gate field cutoff structure designed to optimize the balance of conduction and switching losses, thereby enhancing the efficiency of any frequency converter ‌. Its technical specifications and typical applications are as follows:

Technical Specification

IGBT type: Grooved field cut-off

Voltage - Emitter breakdown (maximum value) : 650 V

Current - Collector (Ic) (maximum value) : 80 A

Current-collector pulse (Icm) : 160 A

Vce(on) (maximum value) at different Vge and Ic: 2V @ 15V, 40A

Power - Maximum: 283 W

Switching energy: 498µJ (on), 363µJ (off)

Input type: Standard

Gate charge: 210 nC

Td (on/off) value at 25°C: 40ns/142ns

Test conditions: 400V, 40A, 5 ohms, 15V

Reverse recovery time (trr) : 62 ns

Operating temperature: -55°C to 175°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

Typical applications

The STGW40H65DFB IGBT is suitable for applications requiring efficient energy conversion ‌, including:

Photovoltaic inverter

High-frequency converter
