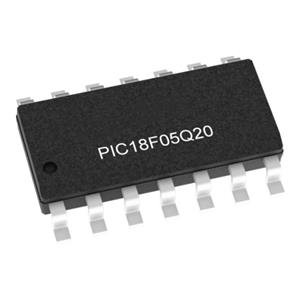

For picture reference, please see the specifications
< >

Commodity Model:PIC18F05Q20-E/SL

Trade Name:8-bit Microcontrollers -MCUs

Brand:Microchip

Particular Year:25+

Package:SOIC-14

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
PIC18F05Q20-E/SL
Package
SOIC-14
Describe
High-performance, low-power PIC18-Q20 microcontroller with XLP technology

Product Description

The PIC18F05Q20-E/SL device is a PIC18-Q20 microcontroller for sensor connection, real-time control and communication applications, and it belongs to one of the smaller product series of PIC18. Its technical parameters and application scenarios are as follows:


Technical parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 11

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 2K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 8x10b SAR

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 14-SOIC


Application scenarios

The PIC18F05Q20-E/SL microcontroller is suitable for various application scenarios, including:

Youdaoplaceholder0 Automotive systems ‌

Youdaoplaceholder0 Industrial control ‌

Youdaoplaceholder0 Computing equipment ‌

Youdaoplaceholder0 Consumer goods ‌

Youdaoplaceholder0 Internet of Things devices ‌

Youdaoplaceholder0 Medical equipment ‌

These applications benefit from their compact size, low power consumption and advanced communication interface features ‌.


The PIC18F05Q20-E/SL MCU features a multi-voltage I/O (MVIO) interface and multiple pins powered by VDDIO2 and VDDIO3, enabling these pins to operate in a voltage range different from that of other components of the microcontroller.
