For picture reference, please see the specifications
< >

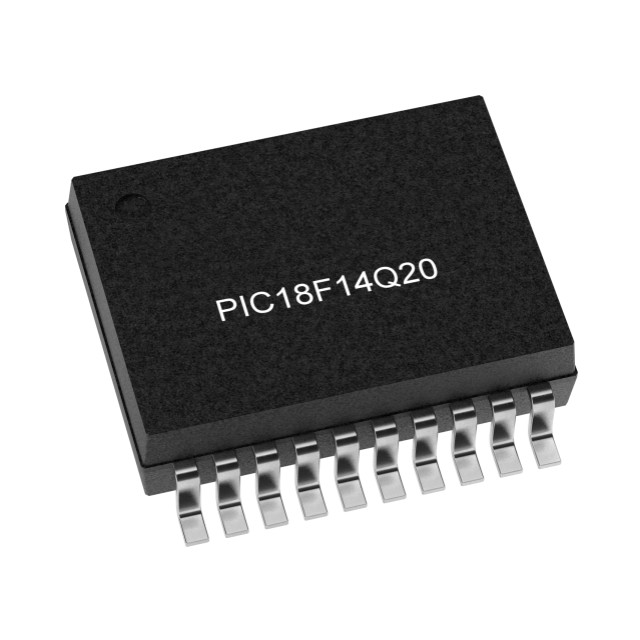

Commodity Model:PIC18F14Q20-E/SS

Trade Name:8-bit Microcontrollers -MCUs

Brand:Microchip

Particular Year:25+

Package:SSOP-20

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
PIC18F14Q20-E/SS
Package
SSOP-20
Describe
High-performance, low-power PIC18-Q20 microcontroller with XLP technology

Product Description

The PIC18F14Q20-E/SS is an 8-bit microcontroller (MCU) with 16KB of flash memory, 1KB of RAM and 256-byte EEPROM, making it suitable for sensor connection, real-time control and communication applications. Its main features and specifications are as follows:


Main characteristics

RISC architecture optimized by C compiler

Running speed

Dc - 64MHz clock input

Minimum instruction cycle: 62.5 ns

Four Direct Memory access (DMA) controllers

Vector interrupt function

128-level deep hardware stack

Low current power-on reset (POR)

Configurable power-on delay Timer (PWRT)

Undervoltage reset (BOR)

Low-power BOR (LPBOR) option

Window Watchdog Timer (WWDT)

Digital and analog peripherals

Programming/debugging features

Energy-saving function


Technical Specification

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 16

Program storage capacity: 16KB (16K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 1K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 11x10b SAR

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 20-SSOP


The PIC18F14Q20-E/SS microcontroller features a multi-voltage I/O (MVIO) interface and multiple pins powered by VDDIO2 and VDDIO3, enabling these pins to operate in a voltage range different from that of other components of the microcontroller.
