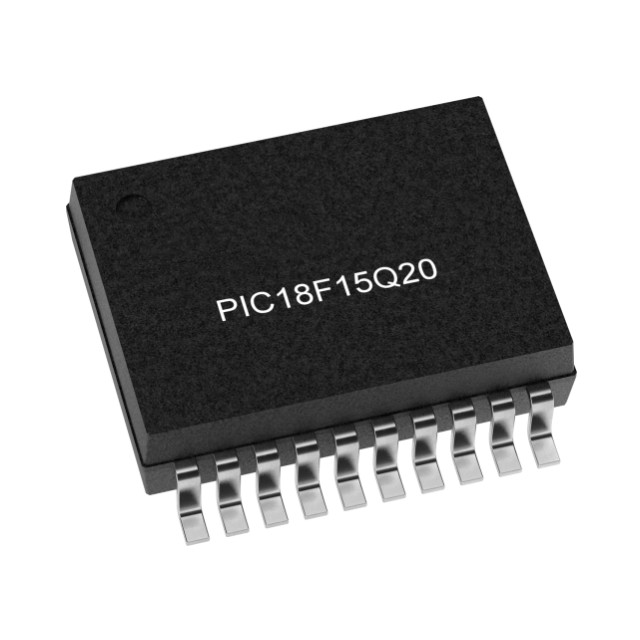

The PIC18F15Q20-E/SS microcontroller is one of the smaller PIC18 product series, mainly used for sensor interfaces, real-time control and communication applications. This product showcases an improved Inter-Integrated Circuit (I3C) target module with a higher communication rate and a 10-bit 300ksps ADC with responsive sensor design computing capabilities. Its technical parameters and applications are as follows:

Technical parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 16

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 2K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 11x10b SAR

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 20-SSOP

Application field

The PIC18F15Q20-E/SS microcontroller is suitable for a variety of application scenarios, including but not limited to

Sensor interface ‌ : Due to its multi-voltage I/O and 10-bit high-precision ADC, it is suitable for sensor applications that require high-precision data acquisition ‌.

Real-time control ‌ : Its high-speed processing capabilities and rich interface support make it suitable for control applications that require quick response ‌.

Communication applications ‌ : Supports I2C, SPI and UART interfaces, suitable for applications requiring data communication ‌.

The PIC18F15Q20-E/SS MCU also features an 8-bit signal routing port module, enabling interconnection of digital peripherals without the need for external pins.
