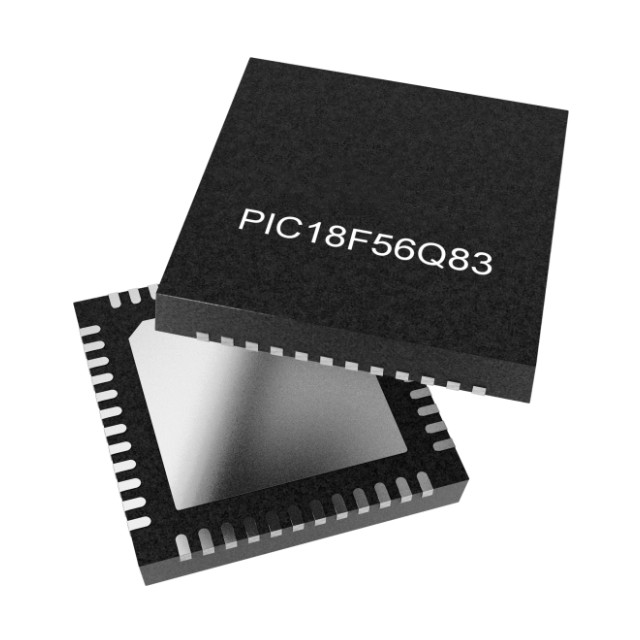

The PIC18F56Q83-E/6MX is a low-power and high-performance microcontroller (MCU) in a 48-pin VQFN package, suitable for many automotive and industrial applications. Its performance parameters and applications are as follows:

Performance parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, LVD, POR, PWM, WDT

I/O number: 44

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: 1K x 8

RAM size: 8K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 43x12b SAR D/A 1x8b

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount, wettable side wings

Device packaging: 48-VQFN (6x6)

Application field

The PIC18F56Q83-E/6MX microcontroller is suitable for embedded system development that requires high integration and multiple peripheral functions, such as industrial control, automotive electronics, smart home and consumer electronics ‌.

The PIC18F56Q83-E/6MX MCU is capable of handling various wired and wireless (using external modules) communication protocols for intelligent applications. This function, when combined with the Kernel Independent Peripheral (CIP) integration function, can achieve various functions for motor control, power supply, sensors, signals and user interface applications.
