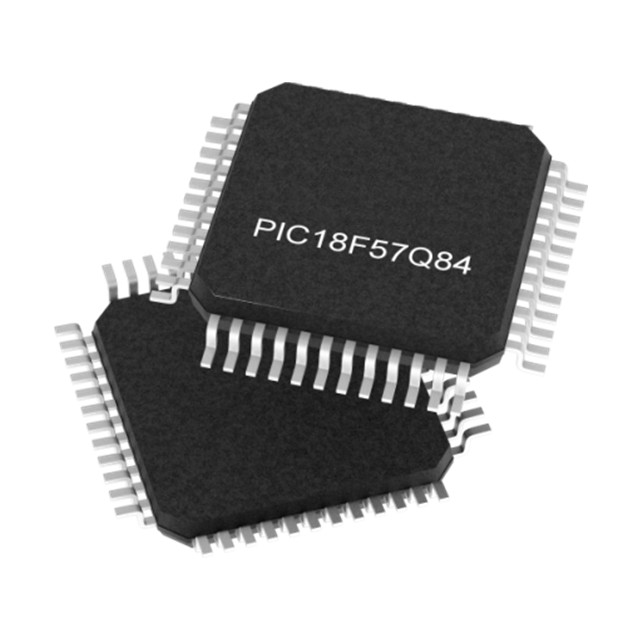

The PIC18F57Q84-E/PT microcontroller is an 8-bit microcontroller launched by Microchip, featuring rich functions and powerful performance. It is particularly suitable for industrial, motor control and power supply applications. Its technical parameters and applications are as follows:

Technical parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, LVD, POR, PWM, WDT

I/O number: 44

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 1K x 8

RAM size: 12.5K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 43x12b SAR D/A 1x8b

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 48-TQFP-EP (7x7)

Application field

The PIC18F57Q84-E/PT microcontroller is widely used in the following fields:

Industrial Control ‌ : Due to its powerful communication capabilities and data processing capabilities, it is suitable for industrial automation and control systems.

Motor Control ‌ : Built-in ADC and PWM modules make it the ideal choice for motor control.

Power Management ‌ : Supports multiple power management functions for power supply and control applications.

The PIC18F57Q84-E/PT MCU combines a wide range of core-independent peripheral (CIP) arrays and controller Local Area Network flexible data Rate (CAN FD). This device contains many additional communication peripherals, such as SPI, I2C and two UArts, which can handle various wired and wireless (using external modules) communication protocols for smart applications.
