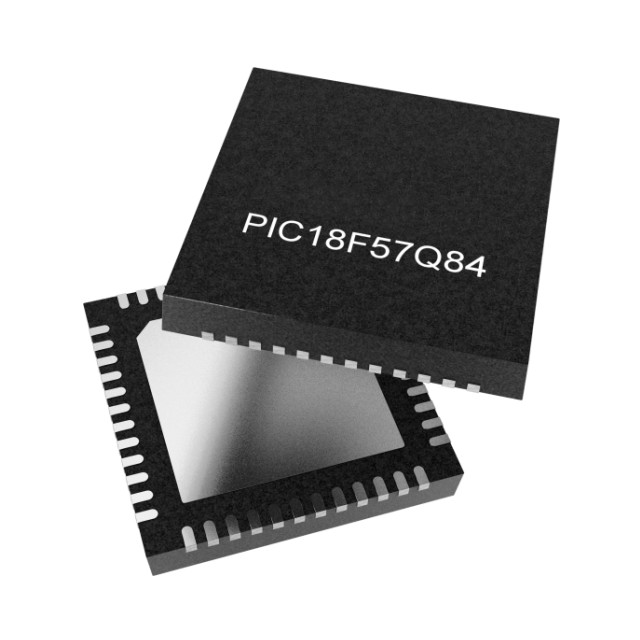

The PIC18F57Q84-E/6MX 8-bit microcontroller combines a wide range of core-independent peripherals (CIP) arrays and controller LAN flexible Data Rate (CAN FD). Its application and performance parameters are as follows:

Application field

The PIC18F57Q84-E/6MX microcontroller is widely used in the following fields:

Industrial Control ‌ : Due to its powerful communication capabilities and data processing capabilities, it is suitable for industrial automation and control systems.

Motor Control ‌ : Built-in ADC and PWM modules make it the ideal choice for motor control.

Power Management ‌ : Supports multiple power management functions for power supply and control applications.

Performance parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, LVD, POR, PWM, WDT

I/O number: 44

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 1K x 8

RAM size: 12.5K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 43x12b SAR D/A 1x8b

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount, wettable side wings

Device packaging: 48-VQFN (6x6)

The PIC18F57Q84-E/6MX device includes many additional communication peripherals, such as SPI, I2C and two UArts, which can handle various wired and wireless (using external modules) communication protocols for smart applications. Combined with the CIP integration capability, this capability can realize the application functions of motor control, power supply, sensors, signals and user interface.
