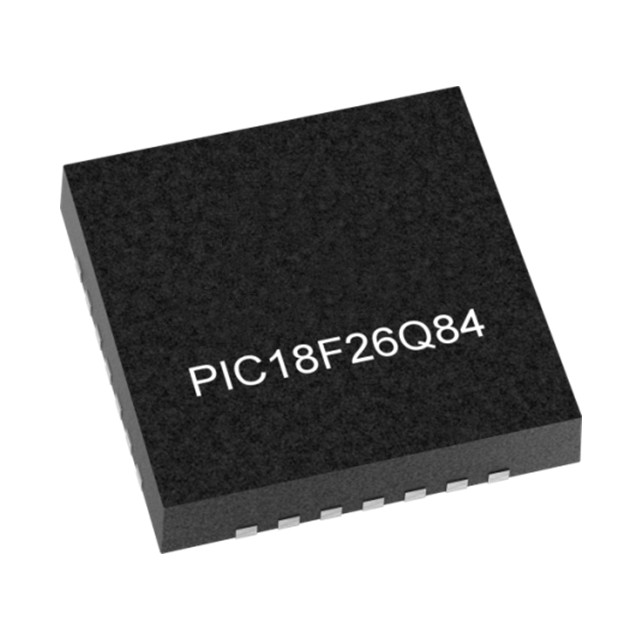

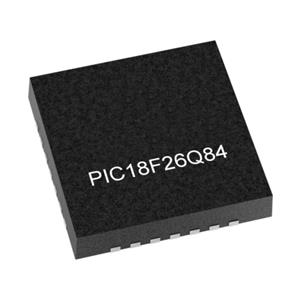

The PIC18F26Q84-E/5N is an 8-bit microcontroller (MCU) and belongs to the PIC18-Q84 series. This series of MCUS expands the functionality of 8-bit MCUS by combining a wide range of core-independent peripherals (CIP) and controller Area network Flexible data Rate (CAN FD). Its technical parameters and applications are as follows:

Technical parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, LVD, POR, PWM, WDT

I/O number: 25

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: 1K x 8

RAM size: 8K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 24x12b SAR D/A 1x8b

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 28-VQFN (6x6)

Application scenarios

The PIC18F26Q84-E/5N is suitable for scenarios that require high-speed communication and real-time system response, such as automotive interfaces and intelligent sensor networks. Its rich peripheral devices and efficient processing capabilities enable it to be widely applied in fields such as industrial control, automotive electronics, and smart home.

The PIC18F26Q84-E/5N MCU also includes a 12-bit ADC with computing capabilities and scenario switching extensions, enabling automatic signal analysis to reduce the complexity of applications.
