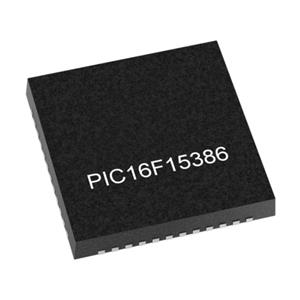

The PIC16LF15386-I/6LX microcontroller adopts analog, kernel-independent and communication peripherals as well as eXtreme Low Power (XLP) technology, and is mainly used in various general-purpose and low-power applications. Its characteristics and performance parameters are as follows:

Features

1. Storage capacity ‌ : The PIC16LF15386-I/6LX has 28KB of flash memory and 2KB of RAM, capable of storing large amounts of programs and data ‌.

2. Peripheral functions ‌ : This microcontroller includes 4 PWM channels, comparator, DAC, ADC, CWG, 4 CLC, 2 EUSART, SPI/I2C interfaces, etc., suitable for a variety of application scenarios ‌. ‌

3. Clock frequency ‌ : Maximum clock frequency of 32 MHZ, suitable for high-speed data processing requirements ‌.

Performance parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 44

Program storage capacity: 28KB (16K x 14)

Program memory type: Flash memory

EEPROM capacity: 224 x 8

RAM size: 2K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 3.6V

Data converter: A/D 43x10b SAR D/A 1x5b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 48-VQFN (6x6)

The PIC16LF15386-I/6LX microcontroller is suitable for a wide range of general-purpose and low-power applications, including but not limited to motor control, security monitoring, system communication, and human-machine interfaces. Its high-level CIP integration and multiple power management functions (such as idle and nap modes) help achieve the best balance between power consumption and performance.
