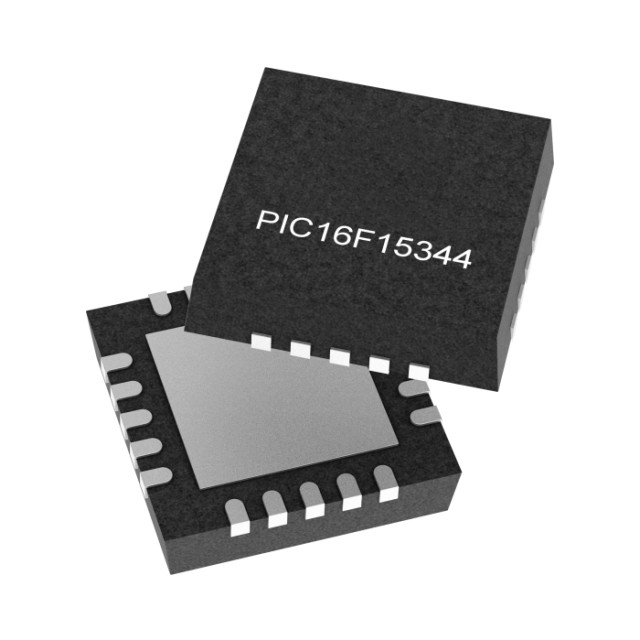

The PIC16F15344-I/ML 8-bit microcontroller features basic peripherals such as intelligent analog, core independent peripherals (CIPs), and communication, combined with extremely low power consumption (XLP), making it suitable for a wide range of low-power applications. Its functions and technical parameters are as follows:

Function

1. Low power ‌ : The PIC16F15344-I/ML microcontroller features extremely low power consumption and is suitable for a wide range of low-power applications ‌.

2. Peripherals ‌ : including PWM, multiple communication interfaces (such as I²C, LINbus, SPI, UART/USART), low voltage detection/reset, temperature sensor, etc. ‌.

3. Memory ‌ : With 7KB of flash memory (4Kx14), 512 bytes of RAM and 224x8 EEPROM‌.

Technical parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 18

Program storage capacity: 7KB (4K x 14)

Program memory type: Flash memory

EEPROM capacity: 224 x 8

RAM size: 512 x 8

Voltage - Power Supply (Vcc/Vdd) : 2.3V - 5.5V

Data converter: A/D 17x10b SAR D/A 1x5b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 20-QFN (4x4)

The PIC16F15344-I/ML microcontroller features PWMs, multi-channel communication, temperature sensor and memory functions, such as Memory Access Zone (MAP) and Device Information Zone (DIA). This microcontroller is mainly used in a variety of general-purpose and low-power applications such as smart home, industrial control, automotive electronics, medical devices, etc. ‌.
