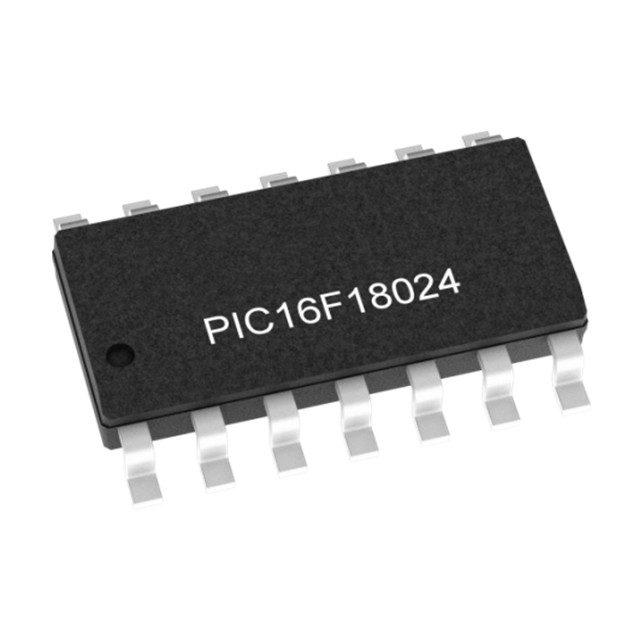

The PIC16F18024-I/SL microcontroller (MCU) is equipped with a complete set of digital and analog peripherals, enabling cost-sensitive sensor and real-time control applications. This product has the following technical parameters and applications:

Technical parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 11

Program storage capacity: 7KB (7K x 8)

Program memory type: Flash memory

EEPROM capacity: 128 x 8

RAM size: 512 x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 15x10b SAR D/A 1x8b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 14-SOIC

Application field

The PIC16F18024-I/SL microcontroller is applicable to fields such as industrial control, power management, computers and peripheral devices, and automotive electronics.

The PIC16F18024-I/SL microcontroller includes a 10-bit analog-to-digital converter (ADCC) with computing capabilities, automatic capacitive voltage divider (CVD) technology for advanced capacitive touch sensing, an 8-bit digital-to-analog converter (DAC) module, and many waveform control and communication peripherals. These small-sized, feature-rich devices are highly suitable for low-cost sensor and control applications.
