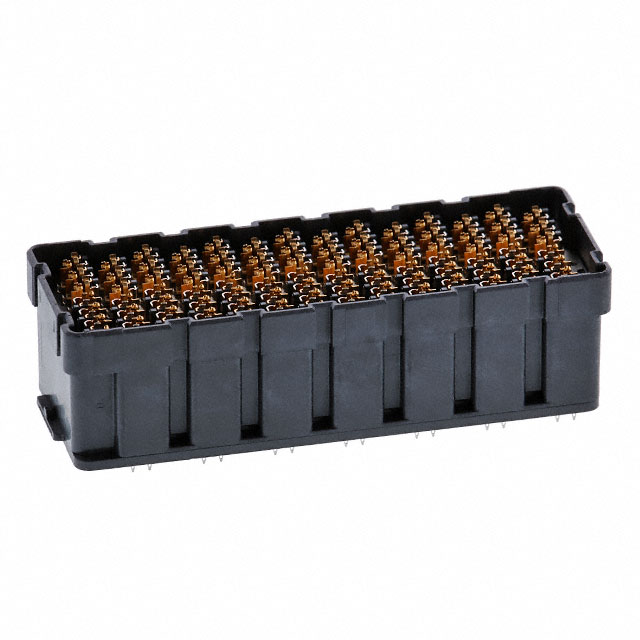

172801-0001 is NeoPress High-Speed Mezzanine Plug, 3.50mm Pitch, 6x14, 84 Triads (252 Circuits), 13.50mm Connector Height, 0.76µm Gold (Au) Plating.

Adjustable differential pairs, low stack height, and variable form solder free crimp termination in NeoPress connector high speed parallel board systems enable design flexibility on space-constrained printed circuit boards while delivering data rates up to 28 Gbps.

Specifications Of 172801-0001

Number of Positions: 252 Position

Pitch: 3.5 mm (0.138 in)

Number of Rows: 6 Row

Termination Style: Solder

Mounting Angle: Vertical

Stack Height: 13.5 mm

Current Rating: 1 A

Voltage Rating: 30 VAC

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 85 C

Contact Plating: Gold

Contact Material: Copper

Housing Material: Liquid Crystal Polymer (LCP)

Unit Weight: 18.344 g
