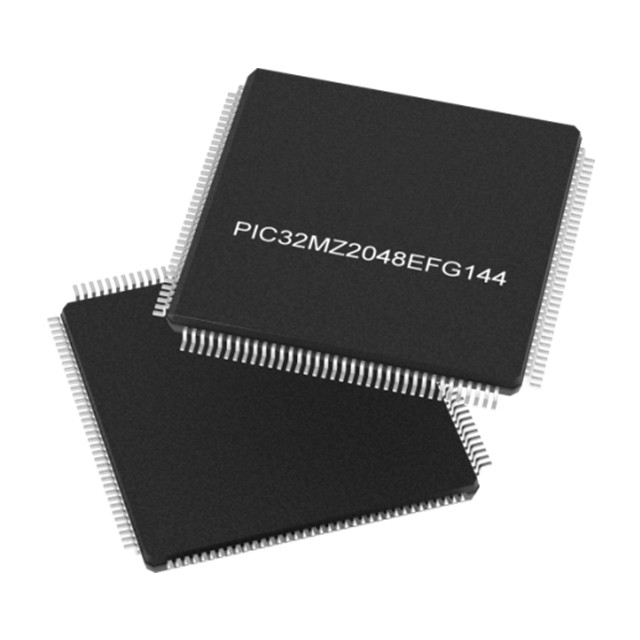

The PIC32MZ2048EFG144-E/PL is a high-performance 32-bit microcontroller with powerful processing capabilities and a rich array of peripheral interfaces, making it suitable for a variety of embedded application scenarios. The MCU is based on the MIPS M-Class core and can reach up to 200MHz, delivering 330 DMIPS and 3.28 CoreMarks/MHz ‌. In addition, the PIC32MZ2048EFG144-E/PL has up to 2MB of Flash and 512KB of RAM, and supports real-time updated dual-panel Flash‌.

Technical Specification

The PIC32MZ2048EFG144-E/PL has the following main specifications:

Core processor: MIPS32® M-Class

Kernel specification: 32-bit single-core

Speed: 180MHz

Connection capabilities: EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 120

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.1V to 3.6V

Data converter: A/D 48x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Device packaging: 144-LQFP (20x20)

Application field

Due to the high performance and rich functionality of PIC32MZ2048EFG144-E/PL, it is suitable for industrial control, automotive electronics, smart home and other fields that require high-speed processing and multiple communication interfaces ‌.
